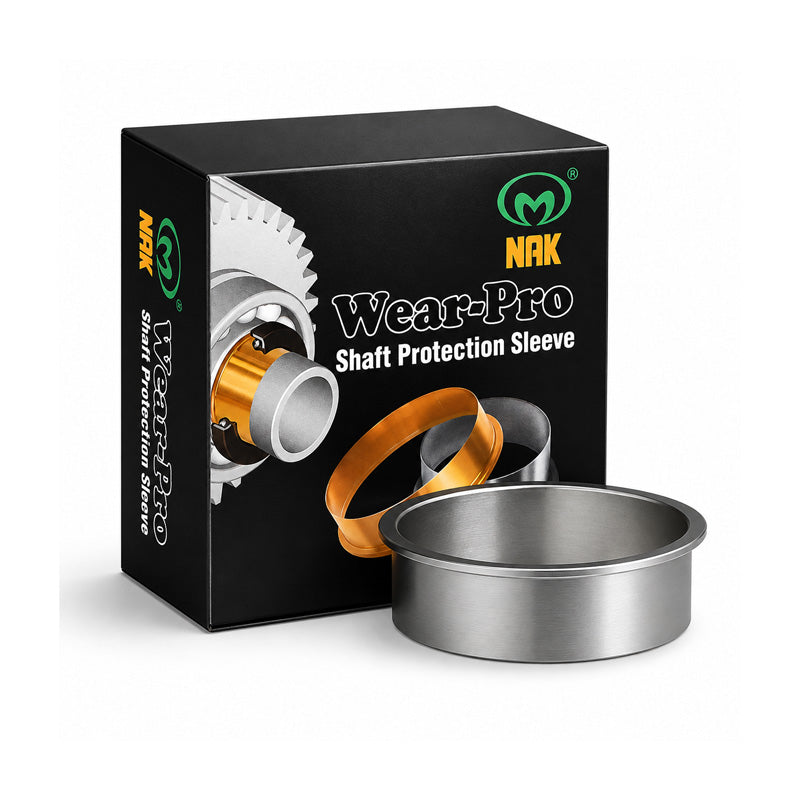

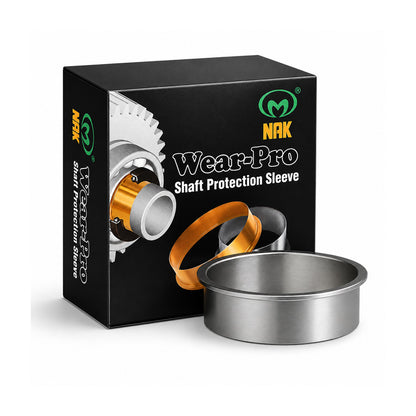

NAK SL004 Hardened Stainless Sleeve for Shafts 0.560-0.566 inch - Allow 7-10 Days
NAK SL004 Hardened Stainless Sleeve for Shafts 0.560-0.566 inch - Allow 7-10 Days
Regular price
$41.10
ex VAT
Regular price
Sale price
$41.10
ex VAT
Equivalent to: CR99056
In stock
Price Break
10+
$19.50
19+
$18.40
29+
$18.18
39+
$17.96
49+
$17.74
74+
$17.52
99+
$16.43
199+
$16.21
249+
$15.99
499+
$15.77
999+
$15.33
Quantity
Couldn't load pickup availability
Description
Description
NAK Wear-Pro Shaft Protection Sleeves: Wear-Pro Sleeves offer an excellent sealing surface for radial shaft seals whilst reducing costly shaft machining or maintenance. These sleeves can be used anywhere with a radial shaft seal, such as in industrial gearboxes, motors, pumps, reducers, construction, agricultural equipment and automotive parts.
Benefits: Simple and quick installation, cost-effective, high-grade surface
- Brand / Quality:
- NAK - High Quality
- Width:
- 0.39 inch
- Material:
- SAE 30304 Hardened Stainless
- Shaft Diameter:
- 0.563 inch
- Flange Diameter:
- 0.752 inch
Technical
Technical
| Shaft Diameter Range (A) | 0.560-0.566 inch |
|---|---|
| Nominal Shaft Diameter (A) | 0.563 inch |
| Flange Diameter (D) | 0.752 inch |
| Width on Shaft (X) | 0.248 inch |
| Overall Width (Y) | 0.39 inch |
| Installation Depth (Z) | 1.831 inch |
| Flange Diameter (D) Tolerance | 1.6mm |
| Width on Shaft (X) Tolerance | 0.8mm |
| Overall Width (Y) Tolerance | 0.8mm |
