SKU: SIR25ES-SKF

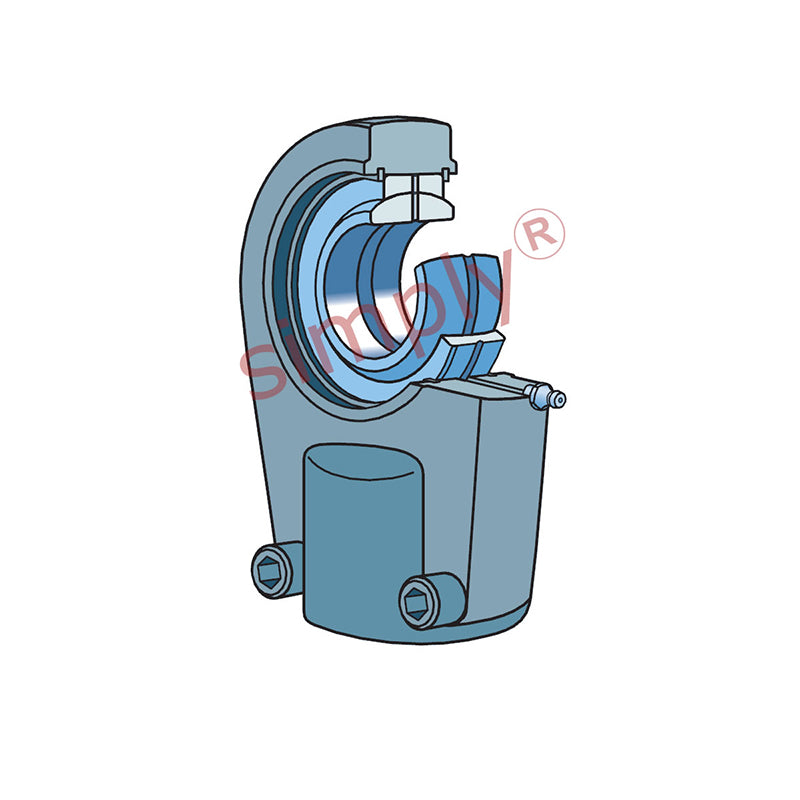

SKF SIR25ES Right Hand Steel / Steel Clamp Type Female Rod End M16x1.5 Thread
SKF SIR25ES Right Hand Steel / Steel Clamp Type Female Rod End M16x1.5 Thread
Regular price
$175.52
ex VAT
Regular price
Sale price
$175.52
ex VAT
Equivalent to: PR25U GIHRK25DO
In stock
Price Break
10+
$83.34
19+
$78.66
29+
$77.72
39+
$76.79
49+
$75.85
74+
$74.91
99+
$70.23
199+
$69.29
249+
$68.36
499+
$67.42
999+
$65.55
Quantity
Couldn't load pickup availability
Description
Description
|
SKF SIR..ES Series Rod End Bearings: This series is classed as rod end bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these rod end bearings are unsealed and require maintenance from time to time in the form of re-lubrication via the re lubrication point in the side of the head, this will serve to extend it's life cycle. Dependent on installation design the lubricant may also be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are metric sized rod end bearings. Sizes 25 to 80mm are made of heat treatable C45V steel, sizes 90 to 120mm are made from EN-GJS-400-15 Steel and will operate within -50deg C to +200 deg C. Available in Right or Left hand threads, the Left hand threaded version has a letter L in the part number to denote the difference. This series differs from the SIJ series in that they have a shorter thread and a more compact space saving design. Application: Suitable for hydraulic cylinders, the slotted shank enables the rod end to be secured by tightening bolts. Benefits: Re-lubricate-able |
- Brand / Quality:
- SKF - High Quality
- Thread Size:
- M16x1.5
- Thread Direction:
- Right Hand
- Inside Diameter:
- 25mm
Technical
Technical

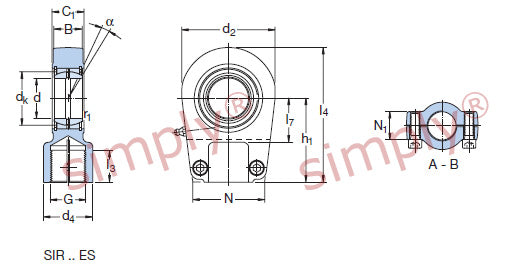

| d | 25mm |
|---|---|
| d2 max | 58mm |
| G 6H | M16x1.5 |
| B | 20mm |
| C1 max | 23.5mm |
| h1 | 50mm |
| a | 7deg |
| Dynamic load C | 48 kN |
| Static load Co | 52 kN |
| Weight | 0.49 kg |
| dk | 35.5mm |
| d4 | 26.5mm |
| l3 min | 17mm |
| l4 max | 81mm |
| l7 min | 27mm |
| N max | 46mm |
| N1 max | 22mm |
| r1 min | 0.6mm |
| Size bolt with internal hexagon | M8 |
