SKU: SILKB6F-SKF

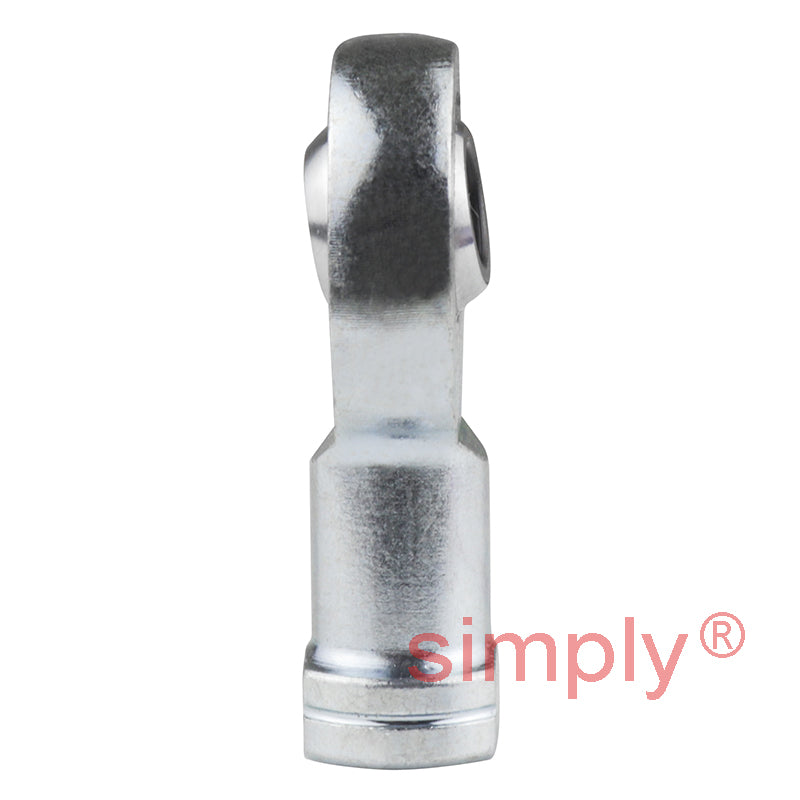

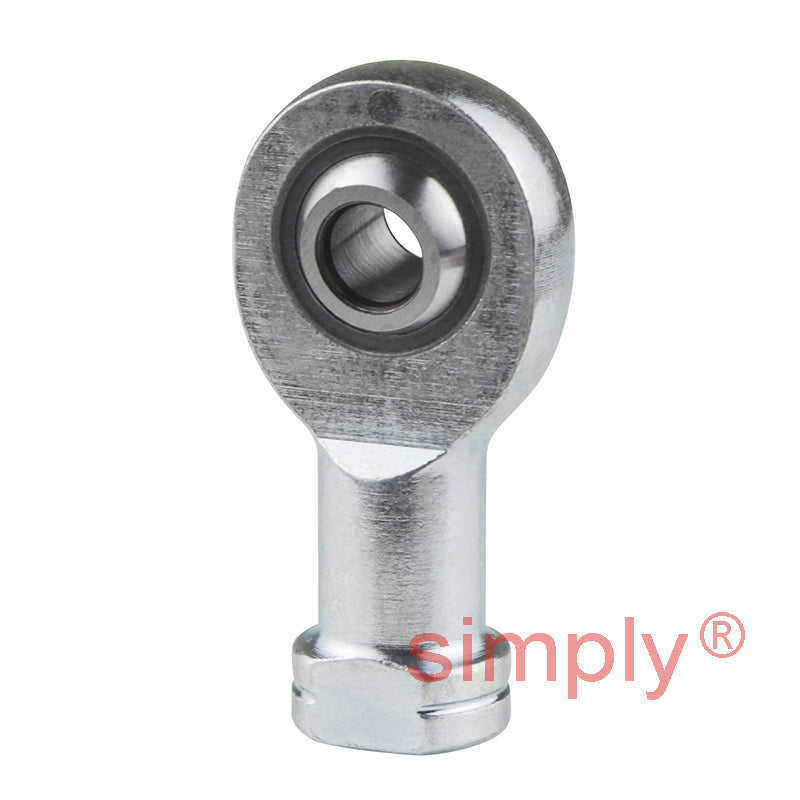

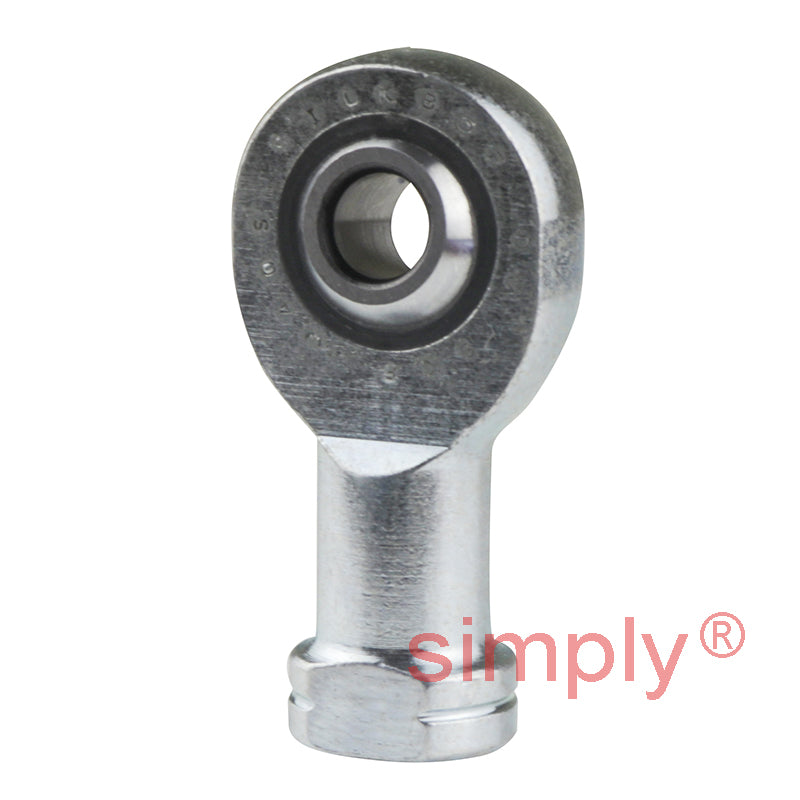

SKF SILKB6F Left Hand Steel / PTFE FRP Lined Plain Female Rod End M6 Thread
- Regular price
- $43.03 ex VAT
- Sale price
- $43.03
- Regular price
-
In stock
Quantity Price Breaks
10+
$38.30
19+
$36.15
29+
$35.71
39+
$35.28
49+
$34.85
74+
$34.42
99+
$32.27
199+
$31.84
249+
$31.41
499+
$30.98
999+
$30.12
SKU:
SILKB6F-SKF
SKF SILKB6F Left Hand Steel / PTFE FRP Lined Plain Female Rod End M6 Thread
- Regular price
- $43.03 ex VAT
- Sale price
- $43.03
- Regular price
-
Description
|
SKF SIKB..F Series Rod End Bearings: This series is classed as maintenance free rod end bearings. Comprising of sliding contact surfaces of steel against PTFE impregnated fibre re-in forced polymer (FRP) these rod end bearings are unsealed and will operate within -40deg C to +75 deg C, load carrying capacity will be reduced over +50 degrees C. Rod ends with a Steel / PTFE FRP sliding contact surface combination consist of a rod end housing and a spherical plain bearing inner ring. Between the housing and the inner ring, a sliding layer of fibre reinforced polymer, containing PTFE, is molded to the housing. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Suitable for heavy, constant direction loads, where low coefficient of friction is required; limited suitability for alternating loads, shock loads. Benefits: Maintenance free, Steel / PTFE FRP |
