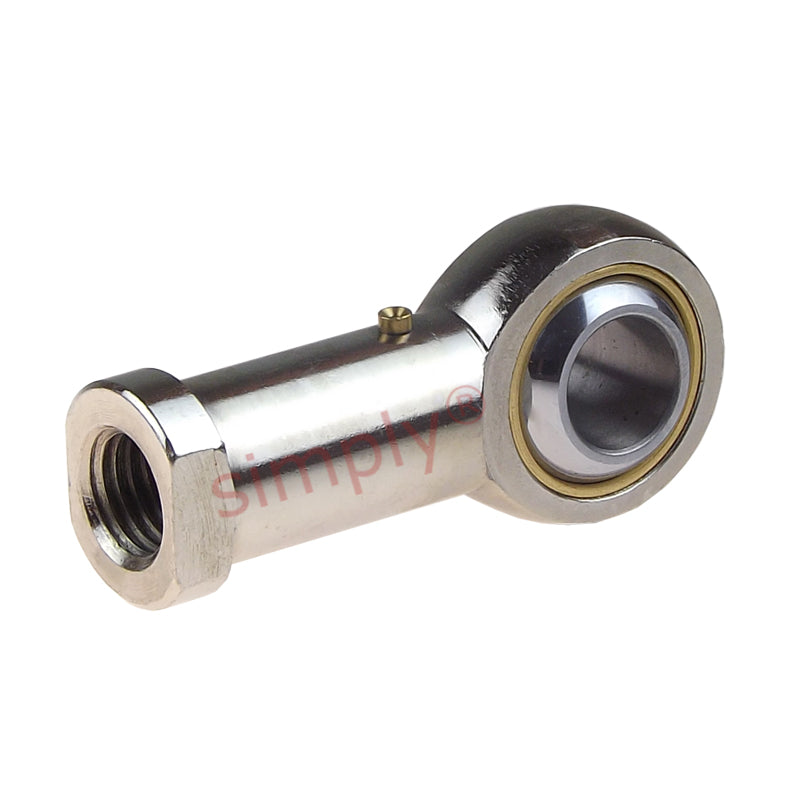

• Codex SILKAC18M Left Hand Steel / Bronze Lined Plain Female Rod End M18x1.5 Thread
1 1

SKU: SILKAC18M-CDX

Codex SILKAC18M Left Hand Steel / Bronze Lined Plain Female Rod End M18x1.5 Thread

Codex SILKAC18M Left Hand Steel / Bronze Lined Plain Female Rod End M18x1.5 Thread
$68.92 ex VAT
$68.92 ex VAT
Sale Sold out

Equivalent to: TSFL18 PHSL18 SILBP18S PHS18L FBL-M18

In stock

Price Break
10+ $32.68
19+ $30.84
29+ $30.47
39+ $30.11
49+ $29.74
74+ $29.37
99+ $27.54
199+ $27.17
249+ $26.80
499+ $26.44
999+ $25.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CDX_SIKC_DESC
Brand / Quality:
Codex - Good Quality
Thread Size:
M18x1.5
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
18mm
Material:
Bronze Lined
Technical
d 18mm
d2 max 47mm
G M18x1.5
B 23mm
C1 max 16.5mm
h1 71mm
Max misalignment angle 15 degrees
Dynamic load 26 kN
Static load 35.5 kN
dk 31.7mm
d3 25mm
d4 max 32mm
l3 min 27mm
l4 max 96mm
l5 10mm
l7 min 23mm
r1 min 0.3mm
w 27mm
Weight 0.3 kg
