• Codex SILKAC16M Left Hand Steel / Bronze Lined Plain Female Rod End M16 Thread
1 1

SKU: SILKAC16M-CDX

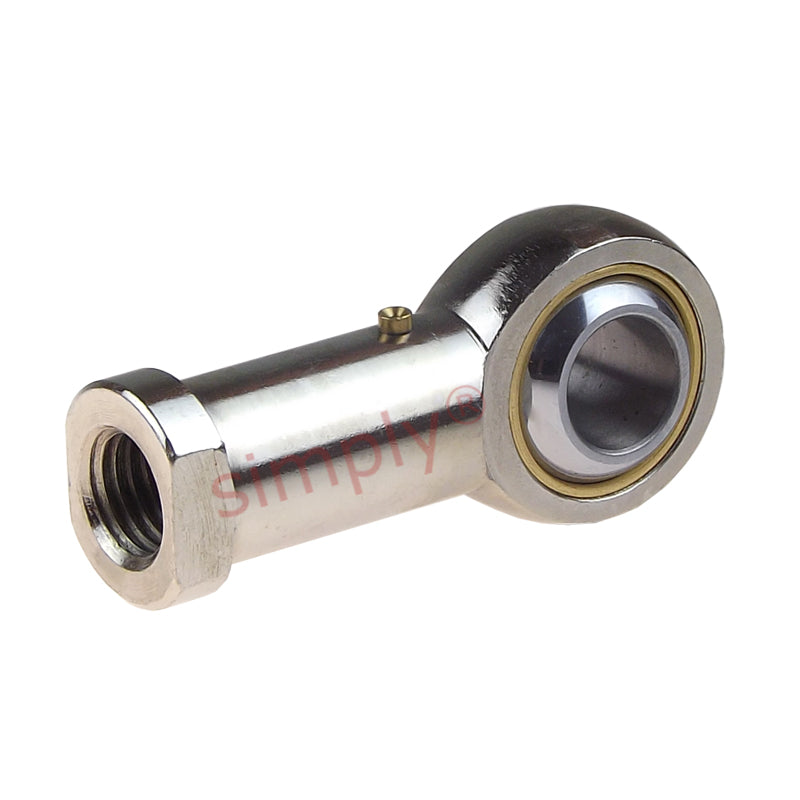

Codex SILKAC16M Left Hand Steel / Bronze Lined Plain Female Rod End M16 Thread

Codex SILKAC16M Left Hand Steel / Bronze Lined Plain Female Rod End M16 Thread
$51.48 ex VAT
$51.48 ex VAT
Sale Sold out

Equivalent to: TSFL16 PHSL16 SILBP16S PHS16L FBL-M16

In stock

Price Break
10+ $24.41
19+ $23.04
29+ $22.77
39+ $22.49
49+ $22.22
74+ $21.94
99+ $20.57
199+ $20.30
249+ $20.02
499+ $19.75
999+ $19.20

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CDX_SIKC_DESC
Brand / Quality:
Codex - Good Quality
Thread Size:
M16
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
16mm
Material:
Bronze Lined
Technical
d 16mm
d2 max 43mm
G M16
B 21mm
C1 max 15mm
h1 64mm
Max misalignment angle 15 degrees
Dynamic load 21.6 kN
Static load 29 kN
dk 28.5mm
d3 22mm
d4 max 29mm
l3 min 24mm
l4 max 87mm
l5 8mm
l7 min 21mm
r1 min 0.3mm
w 22mm
Weight 0.22 kg
