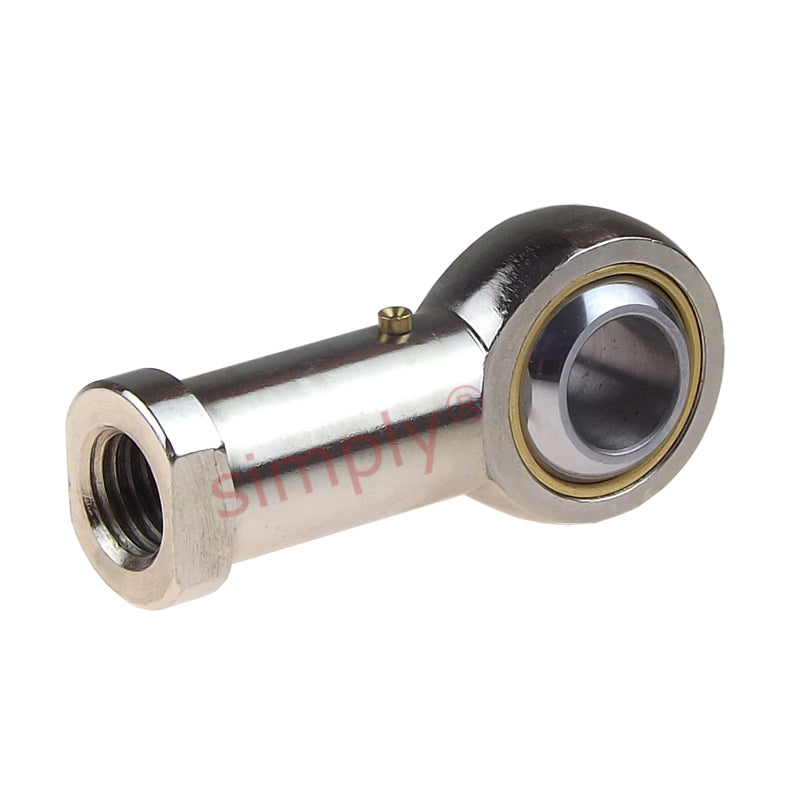

• Codex SILKAC10M Left Hand Steel / Bronze Lined Plain Female Rod End M10 Thread
1 1

SKU: SILKAC10M-CDX

Codex SILKAC10M Left Hand Steel / Bronze Lined Plain Female Rod End M10 Thread

Codex SILKAC10M Left Hand Steel / Bronze Lined Plain Female Rod End M10 Thread
$20.98 ex VAT
$20.98 ex VAT
Sale Sold out

Equivalent to: TSFL10 PHSL10 SILBP10S PHS10L FBL-M10

In stock

Price Break
10+ $9.95
19+ $9.39
29+ $9.28
39+ $9.17
49+ $9.06
74+ $8.94
99+ $8.39
199+ $8.27
249+ $8.16
499+ $8.05
999+ $7.83

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
CDX_SIKC_DESC
Brand / Quality:
Codex - Good Quality
Thread Size:
M10
Thread M / F:
Female
Thread Direction:
Left Hand
Inside Diameter:
10mm
Material:
Bronze Lined
Technical
d 10mm
d2 max 29mm
G M10
B 14mm
C1 max 10.5mm
h1 43mm
Max misalignment angle 13 degrees
Dynamic load 10 kN
Static load 12.2 kN
dk 19mm
d3 15mm
d4 max 20mm
l3 min 15mm
l4 max 59mm
l5 6.5mm
l7 min 14mm
r1 min 0.3mm
w 17mm
Weight 0.072 kg
