SKU: SIKAC12M-CDX

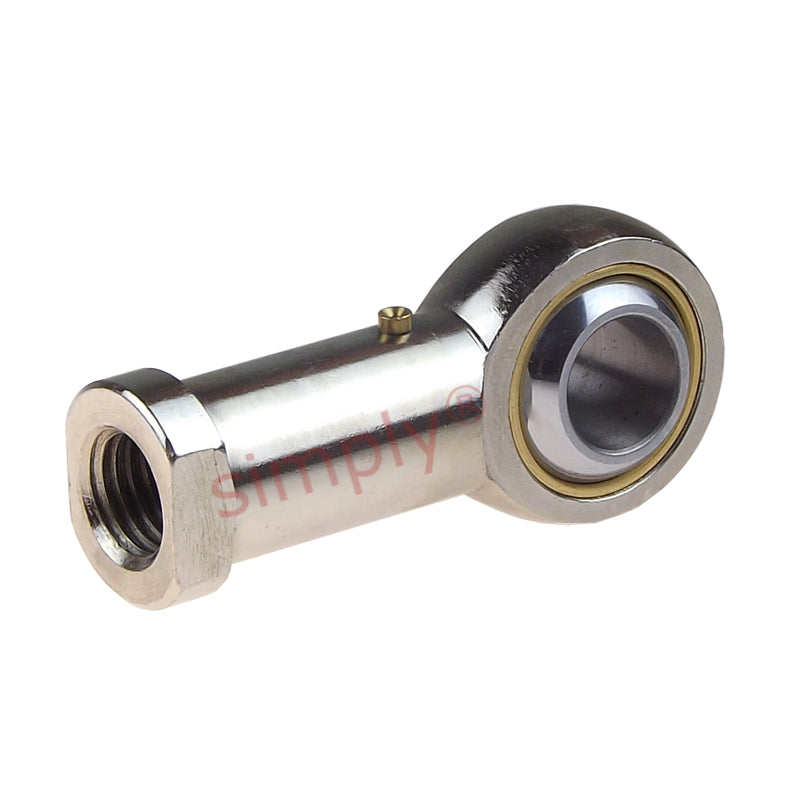

Codex SIKAC12M Right Hand Steel / Bronze Lined Plain Female Rod End M12x1.75 Thread
- Regular price
- $25.80 ex VAT
- Sale price
- $25.80
- Regular price
-
In stock
Quantity Price Breaks
10
$22.96
19
$21.67
29
$21.41
39
$21.16
49
$20.90
74
$20.64
99
$19.35
199
$19.09
249
$18.83
499
$18.58
999
$18.06
SKU:
SIKAC12M-CDX
Codex SIKAC12M Right Hand Steel / Bronze Lined Plain Female Rod End M12x1.75 Thread
- Regular price
- $25.80 ex VAT
- Sale price
- $25.80
- Regular price
-
Description
|
SIKAC..M Series Rod End Bearings:These rod end bearings comprise of sliding contact surfaces of steel against bronze. They are unsealed and although they are low maintenance they may require re-lubrication from time to time via the re lubrication point in the side of the head this will serve to extend it's life cycle. Operating temperatures are within -30deg C to +180 deg C. Left and Right hand threaded versions are available an L in the part number denotes the left hand option. These are metric sized rod end bearings. Application: Lower load carrying capacity compared to steel/steel rod ends, but more suitable for applications where lubricant starvation might occur. Benefits: Lower maintenance. |

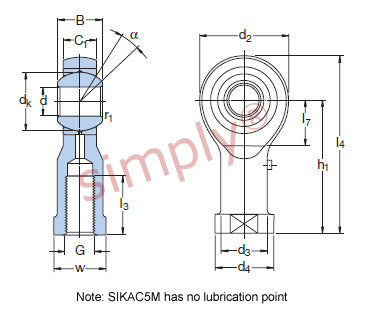

Technical
| d | = | 12mm |
| d2 max | = | 33mm |
| G | = | M12x1.75 |
| B | = | 16mm |
| C1 max | = | 12mm |
| h1 | = | 50mm |
| Max misalignment angle | = | 13 degrees |
| Dynamic load | = | 13.4 kN |
| Static load | = | 14 kN |
| dk | = | 22.2mm |
| d3 | = | 17.5mm |
| d4 max | = | 23mm |
| l3 min | = | 18mm |
| l4 max | = | 68mm |
| l5 | = | 6.5mm |
| l7 min | = | 16mm |
| r1 min | = | 0.3mm |
| w | = | 19mm |
| Weight | = | 0.11 kg |
