SKU: SG047AR0

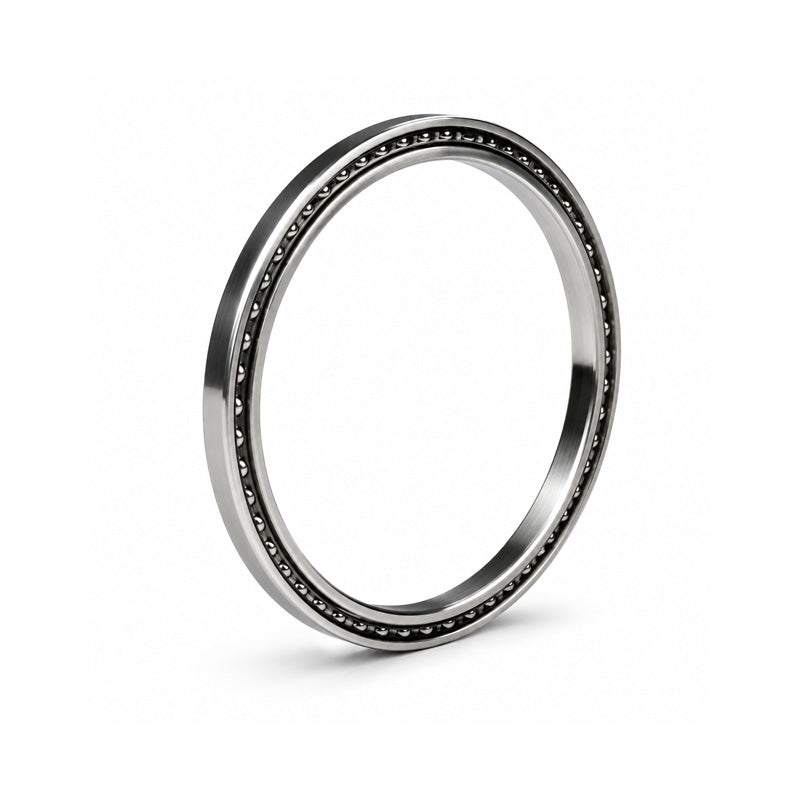

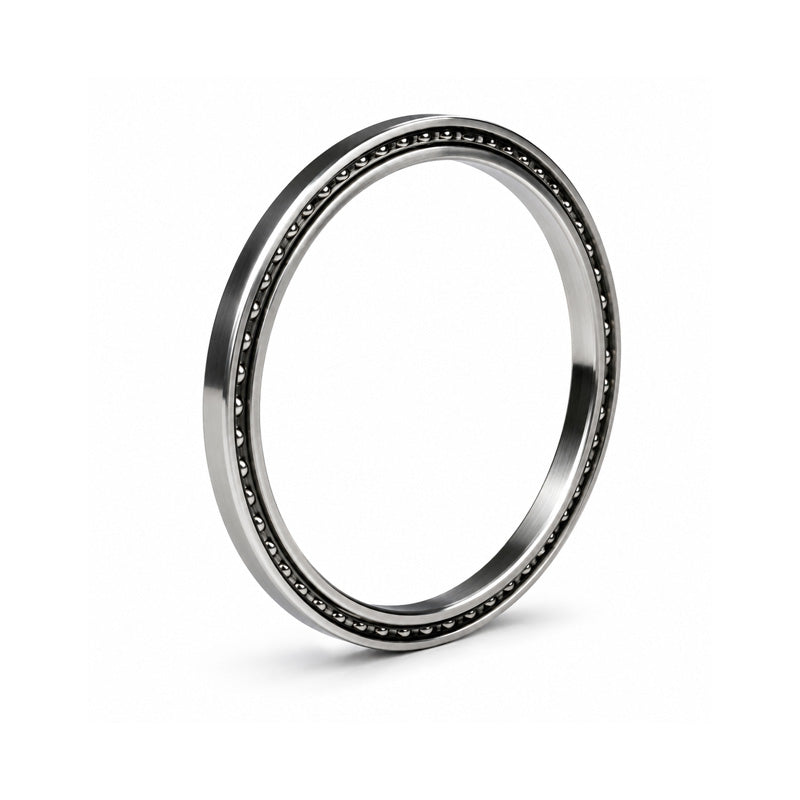

Silverthin SG047AR0 Thin Section Angular Contact Ball Bearing 4.75x6.75x1 inch - Allow 7-10 Days
Silverthin SG047AR0 Thin Section Angular Contact Ball Bearing 4.75x6.75x1 inch - Allow 7-10 Days
Equivalent to: KG047AR0
Out of stock
Description
Description
|
Silverthin Thin Section Angular Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed to accommodate axial loads. These bearing also support moment loads and reversing axial loads when used in pairs. These bearings also work well in radial or combined radial-thrust applications. Made from 52100 chrome steel and contains a brass circular pocket separator. Benefits: Compact, lightweight, accommodates radial and axial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 120.65mm = 4-3/4 inch
- Outside Diameter:
- 171.45mm = 6-3/4 inch
- Width:
- 25.4mm = 1 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 4.75 inch |
|---|---|
| D | 6.75 inch |
| Width | 1 inch |
| L1 | 5.492 inch |
| L2 | 6.008 inch |
| L3 | 6.239 inch |
| Static Radial Load | 48.495 kN |
| Dynamic Radial Load | 23.082 kN |
| Static Thrust Load | 139.972 kN |
| Dynamic Thrust Load | 66.603 kN |
| Weight | 1.8597kg |
