SKU: SG045CP0

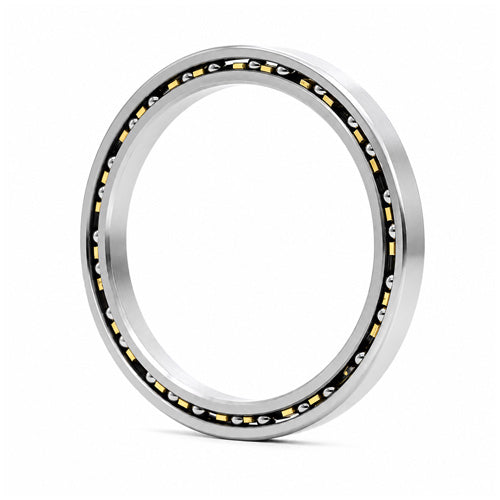

Silverthin SG045CP0 Thin Section Radial Contact Ball Bearing 4.5x6.5x1 inch - Allow 7-10 Days
Silverthin SG045CP0 Thin Section Radial Contact Ball Bearing 4.5x6.5x1 inch - Allow 7-10 Days
Equivalent to: KG045CP0
Out of stock
Description
Description
|
Silverthin Thin Section Radial Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with deep ball grooves to withstand high loads. Although these bearings are used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads and moment loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal for applications with radial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 114.3mm = 4-1/2 inch
- Outside Diameter:
- 165.1mm = 6-1/2 inch
- Width:
- 25.4mm = 1 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

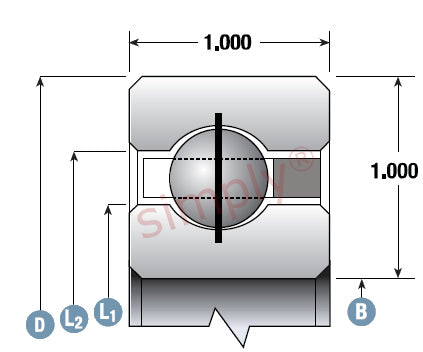

| B | 4.5 inch |
|---|---|
| D | 6.5 inch |
| Width | 1 inch |
| L1 | 5.242 inch |
| L2 | 5.758 inch |
| L3 | 5.989 inch |
| Static Radial Load | 38.984 kN |
| Dynamic Radial Load | 20.916 kN |
| Weight | 1.8144 kg |
