SKU: SG042CP0

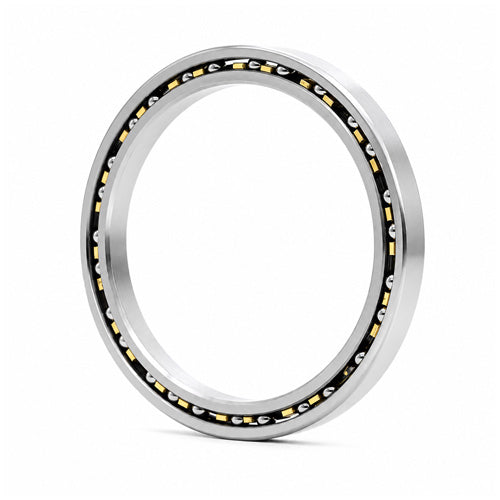

Silverthin SG042CP0 Thin Section Radial Contact Ball Bearing 4.25x6.25x1 inch - Allow 7-10 Days
Silverthin SG042CP0 Thin Section Radial Contact Ball Bearing 4.25x6.25x1 inch - Allow 7-10 Days
Equivalent to: KG042CP0
Out of stock
Description
Description
|
Silverthin Thin Section Radial Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed with deep ball grooves to withstand high loads. Although these bearings are used primarily in applications with radial loads, it can withstand moderate axial loads, reversing axial loads and moment loads. Made from 52100 chrome steel and contains a brass snapover separator. Benefits: Compact, lightweight, ideal for applications with radial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 107.95mm = 4-1/4 inch
- Outside Diameter:
- 158.75mm = 6-1/4 inch
- Width:
- 25.4mm = 1 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 4.25 inch |
|---|---|
| D | 6.25 inch |
| Width | 1 inch |
| L1 | 4.992 inch |
| L2 | 5.508 inch |
| L3 | 5.741 inch |
| Static Radial Load | 36.529 kN |
| Dynamic Radial Load | 20.053 kN |
| Weight | 1.7236 kg |
