SKU: SG040AR0

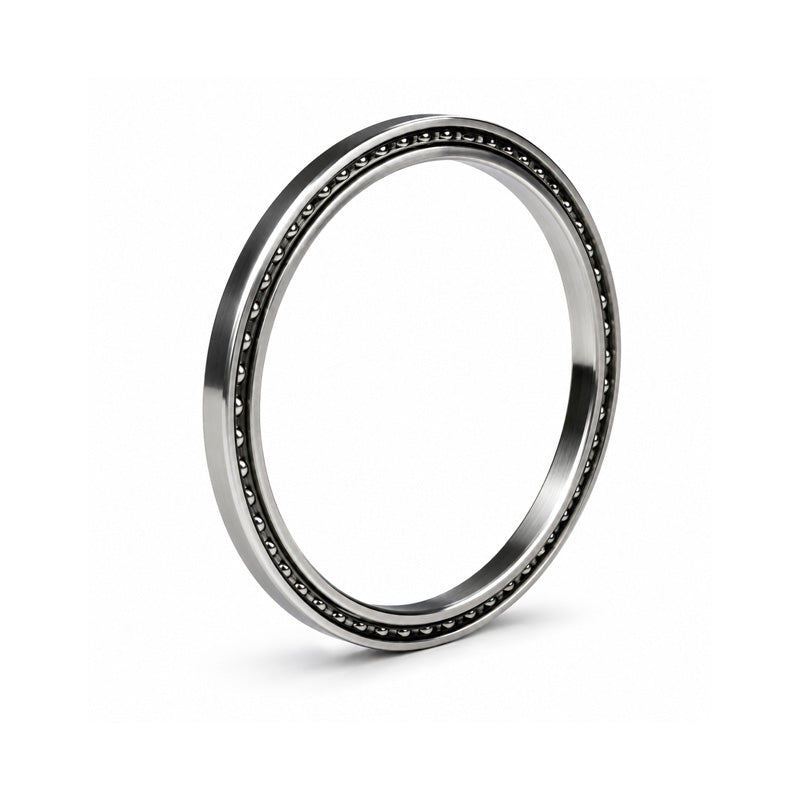

Silverthin SG040AR0 Thin Section Angular Contact Ball Bearing 4x6x1 inch - Allow 7-10 Days
Silverthin SG040AR0 Thin Section Angular Contact Ball Bearing 4x6x1 inch - Allow 7-10 Days
Equivalent to: KG040AR0
Out of stock
Description
Description
|
Silverthin Thin Section Angular Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed to accommodate axial loads. These bearing also support moment loads and reversing axial loads when used in pairs. These bearings also work well in radial or combined radial-thrust applications. Made from 52100 chrome steel and contains a brass circular pocket separator. Benefits: Compact, lightweight, accommodates radial and axial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 101.6mm = 4 inch
- Outside Diameter:
- 152.4mm = 6 inch
- Width:
- 25.4mm = 1 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 4 inch |
|---|---|
| D | 6 inch |
| Width | 1 inch |
| L1 | 4.742 inch |
| L2 | 5.258 inch |
| L3 | 5.491 inch |
| Static Radial Load | 42.169 kN |
| Dynamic Radial Load | 21.005 kN |
| Static Thrust Load | 121.717 kN |
| Dynamic Thrust Load | 60.647 kN |
| Weight | 1.6329kg |
