SKU: SFT45A-RHP

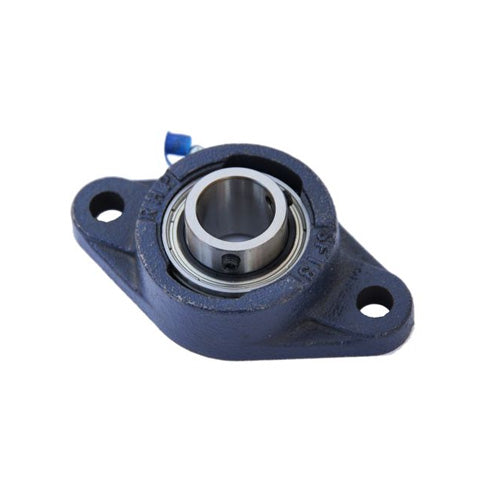

RHP SFT45A Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
RHP SFT45A Two Bolt Oval Cast Iron Flange Housing 45mm Bore Insert
Out of stock
Share this product
Description
Description
|
RHP SFT Series 2 Bolt Oval Cast Iron Housings: Bearing units supplied with a flat back sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has two grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 45mm
- Style:
- SFT
- Bolt Hole Centres:
- 148.5mm

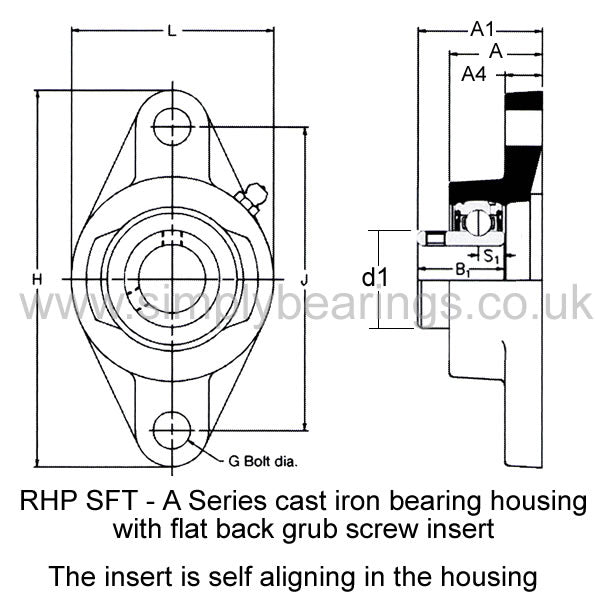

Technical
Technical
| Bore | 45mm |
|---|---|
| L | 111.1mm |
| H | 179.4mm |
| J | 148.5mm |
| G | 16mm |
| A | 35.3mm |
| A1 | 54.18mm |
| A4 | 14.3mm |
| B1 | 41.18mm |
| s1 | 11.05mm |
| d1 | 57.3mm |
| Dynamic load Cr | 32500 N |
| Static load Cor | 20500 N |
| Rec max speed | 3700 rpm |
| Weight | 2.2 kg |
| Insert | <a href="advanced_search_result.php?keywords=1245-45AG+insonly">1245-45AG Click Here</a> |
| Casting group | 7 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
