SKU: SF3/4-RHP

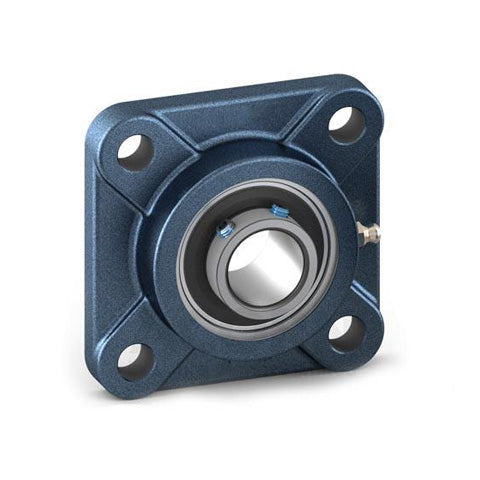

RHP SF3/4 Four Bolt Square Cast Iron Flange Housing and 3/4 inch Bore Grub Screw Full Width Insert
RHP SF3/4 Four Bolt Square Cast Iron Flange Housing and 3/4 inch Bore Grub Screw Full Width Insert
Regular price
$63.68
ex VAT
Regular price
Sale price
$63.68
ex VAT
In stock
Price Break
10+
$30.19
20+
$28.50
30+
$28.16
40+
$27.82
50+
$27.48
75+
$27.14
100+
$25.45
200+
$25.11
250+
$24.77
500+
$24.43
1000+
$23.75
Quantity
Couldn't load pickup availability
Share this product
Description
Description
|
RHP SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a sealed full width bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 19.05mm = 0.75 (3/4) inch
- Style:
- SF
- Bolt Hole Centres:
- 63.5mm = 2.5 (2-1/2) inch

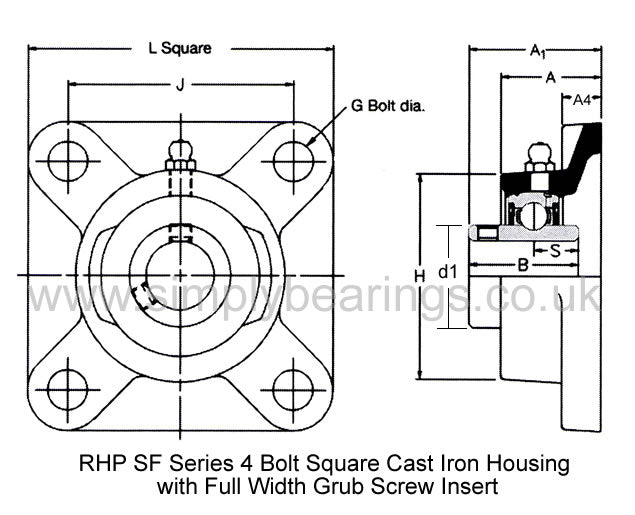

Technical
Technical
| Bore | 3/4 inch |
|---|---|
| L | 3.374 inch |
| H | 2.374 inch |
| J | 2.5 inch |
| G | 0.375 inch |
| A | 1.094 |
| A1 | 1.467 inch |
| A4 | 0.437 inch |
| B | 1.219 |
| s | 0.502 inch |
| d1 | 1.122 inch |
| Dynamic load Cr | 12800 N |
| Static Load Cor | 6650 N |
| Rec max speed | 6700 rpm |
| Weight | 0.7 kg |
| Insert | <a href="advanced_search_result.php?keywords=1020-3/4G+insonly">1020-3/4G Click Here</a> |
| Casting group | 2 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
