SKU: SF180AR0

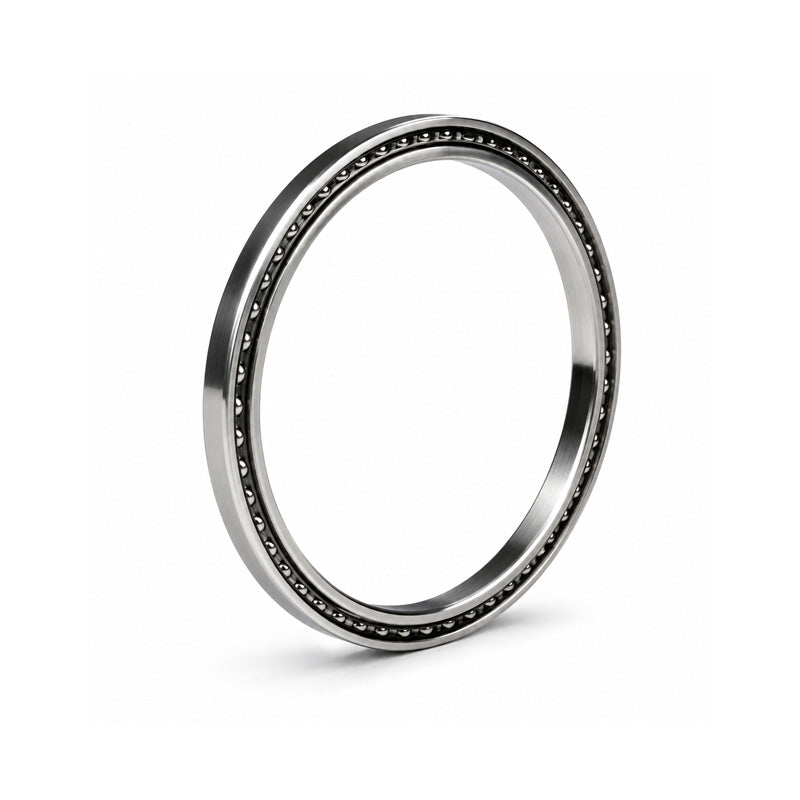

Silverthin SF180AR0 Thin Section Angular Contact Ball Bearing 18x19.5x0.75 inch - Allow 7-10 Days
Silverthin SF180AR0 Thin Section Angular Contact Ball Bearing 18x19.5x0.75 inch - Allow 7-10 Days
Equivalent to: KF180AR0
Out of stock
Description
Description
|
Silverthin Thin Section Angular Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed to accommodate axial loads. These bearing also support moment loads and reversing axial loads when used in pairs. These bearings also work well in radial or combined radial-thrust applications. Made from 52100 chrome steel and contains a brass circular pocket separator. Benefits: Compact, lightweight, accommodates radial and axial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 457.2mm = 18 inch
- Outside Diameter:
- 495.3mm = 19-1/2 inch
- Width:
- 19.05mm = 3/4 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical

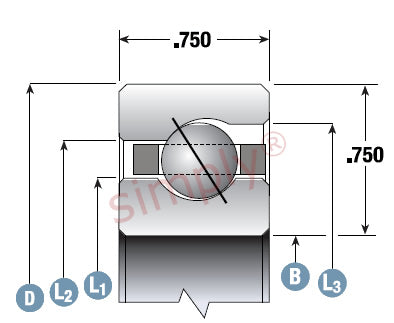

| B | 18 inch |
|---|---|
| D | 19.5 inch |
| Width | 0.75 inch |
| L1 | 18.555 inch |
| L2 | 18.945 inch |
| L3 | 19.096 inch |
| Static Radial Load | 113.038 kN |
| Dynamic Radial Load | 32.699 kN |
| Static Thrust Load | 326.335 kN |
| Dynamic Thrust Load | 94.356 kN |
| Weight | 3.5834kg |
