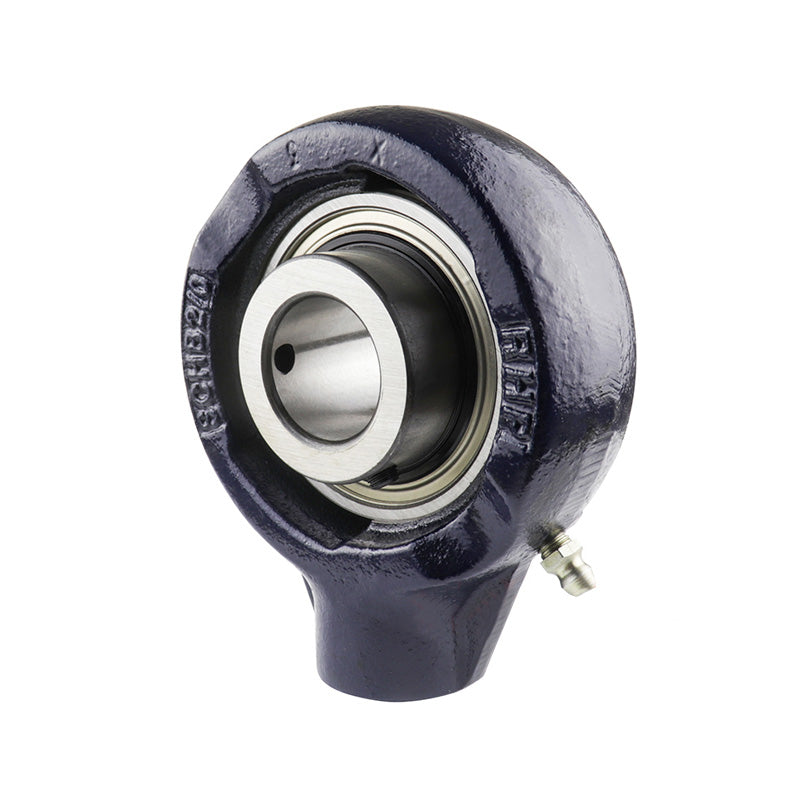

• RHP SCHB1-15/16 BSP Thread Cast Iron Hanger Bearing Unit and 1-15/16 inch Bore Insert 121mm Outside Diameter
1 1

SKU: SCHB1.15/16-RHP

RHP SCHB1-15/16 BSP Thread Cast Iron Hanger Bearing Unit and 1-15/16 inch Bore Insert 121mm Outside Diameter

RHP SCHB1-15/16 BSP Thread Cast Iron Hanger Bearing Unit and 1-15/16 inch Bore Insert 121mm Outside Diameter
$218.43 ex VAT
$218.43 ex VAT
Sale Sold out

In stock

Price Break
10+ $103.72
20+ $97.89
30+ $96.72
40+ $95.56
50+ $94.39
75+ $93.23
100+ $87.40
200+ $86.24
250+ $85.07
500+ $83.90
1000+ $81.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Outside Diameter:
121mm
Style:
SCHB
Technical
Bore 1-15/16 inch
G1 0.827 inch
L 4.764 inch
H 5.669 inch
H1 3.252 inch
Threads 1 BSP
A 1.87 inch
A1 1.094 inch
B 2.031 inch
s 0.752 inch
d1 2.449 inch
Dynamic load Cr 35000 N
Static load Cor 23200 N
Rec max speed 3400 rpm
Weight 2.2 kg
Insert <a href="advanced_search_result.php?keywords=1050-1-15/16G+insonly">1050-1-15/16G Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
