SKU: SCH7/8-RHP

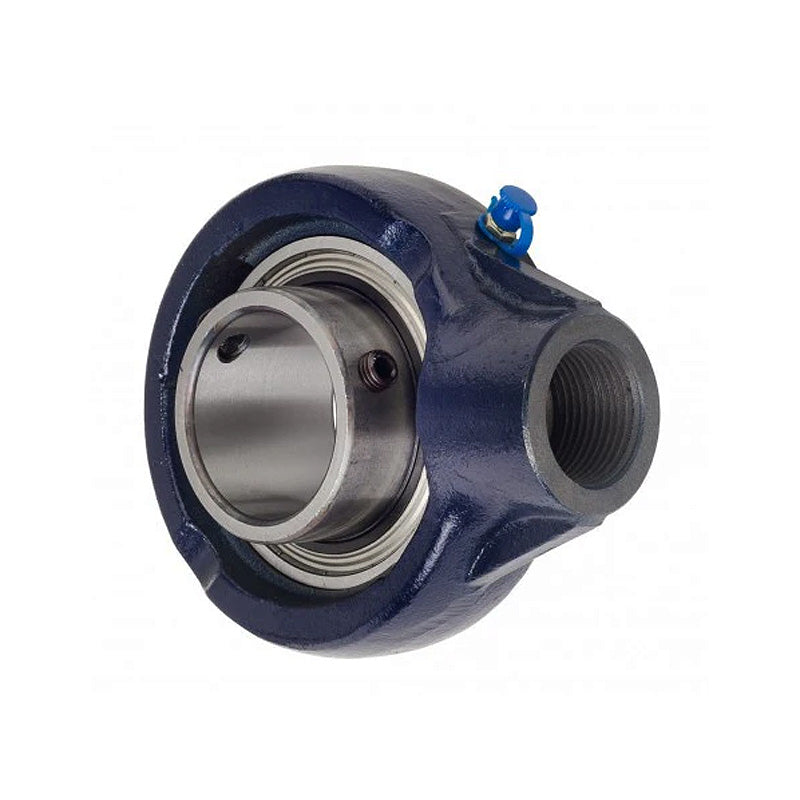

RHP SCH7/8 Metric Thread Cast Iron Hanger Bearing Unit and 7/8 inch Bore Insert 89mm Outside Diameter

RHP SCH7/8 Metric Thread Cast Iron Hanger Bearing Unit and 7/8 inch Bore Insert 89mm Outside Diameter

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 7/8 inch
G1 0.63 inch
L 3.504 inch
H 4.232 inch
H1 2.437 inch
Threads M20X2.5 Metric
A 1.319 inch
A1 0.875 inch
B 1.5 inch
s 0.627 inch
d1 1.575 inch
Dynamic load Cr 19500 N
Static load Cor 11300 N
Rec max speed 5300 rpm
Weight 1.2 kg
Insert <a href="advanced_search_result.php?keywords=1030-7/8G+insonly">1030-7/8G Click Here</a>
Casting group 2/0
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
