SKU: SCH5/8-RHP

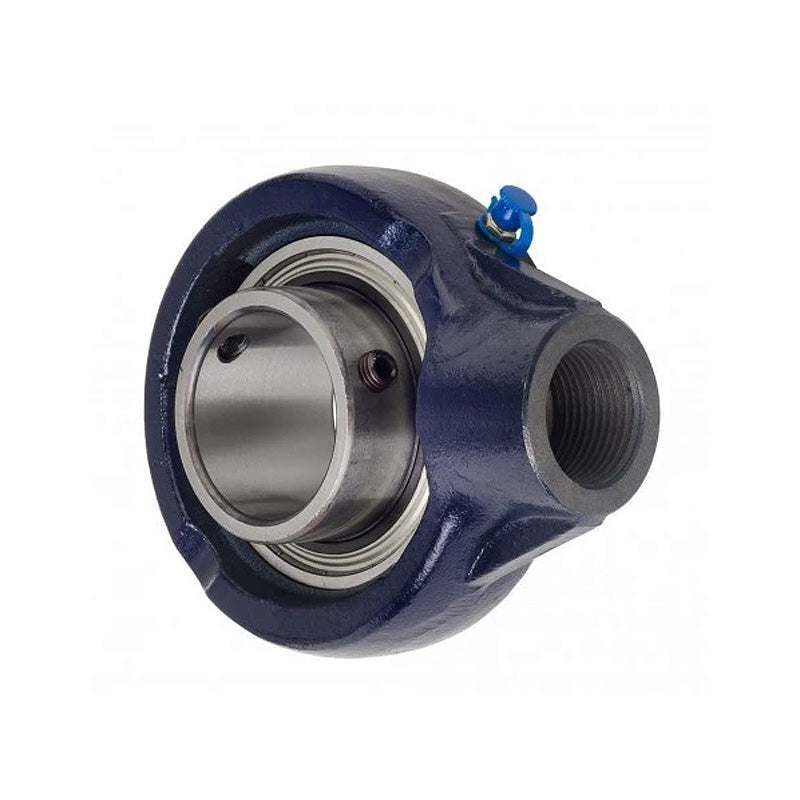

RHP SCH5/8 Metric Thread Cast Iron Hanger Bearing Unit and 5/8 inch Bore Insert 57.5mm Outside Diameter
RHP SCH5/8 Metric Thread Cast Iron Hanger Bearing Unit and 5/8 inch Bore Insert 57.5mm Outside Diameter
Out of stock
Share this product
Description
Description
|
RHP SCH Series Cast Iron Bearing Hanger Units: Cast iron hanger bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
- Brand / Quality:
- RHP - High Quality
- Inside Diameter:
- 15.88mm = 0.625 (5/8) inch
- Outside Diameter:
- 57.5mm
- Style:
- SCH
Technical
Technical
| Bore | 5/8 inch |
|---|---|
| G1 | 0.748 inch |
| L | 2.264 inch |
| H | 3.268 inch |
| H1 | 2.106 inch |
| Threads | M16X2 Metric |
| A | 1.181 inch |
| A1 | 0.625 inch |
| B | 1.078 inch |
| s | 0.455 inch |
| d1 | 0.953 inch |
| Dynamic load Cr | 7300 N |
| Static load Cor | 4760 N |
| Rec max speed | 8800 rpm |
| Weight | 0.6 kg |
| Insert | <a href="advanced_search_result.php?keywords=1017-5/8G+insonly">1017-5/8G Click Here</a> |
| Casting group | 0/1 |
| Grease nipple thread | 1/4 UNF, 1/4 inch x 28 TPI |
