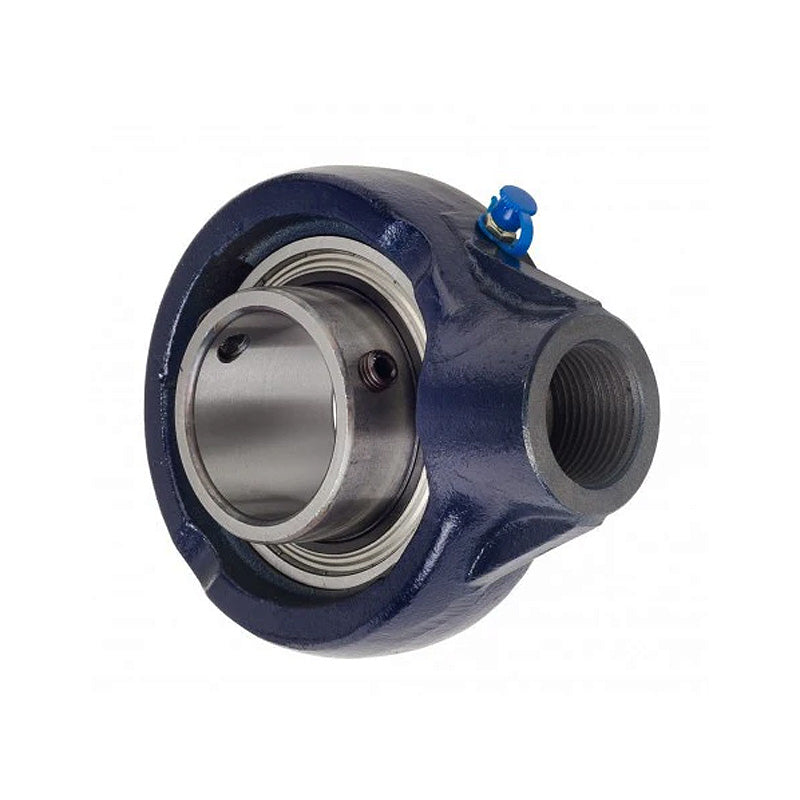

RHP SCH3-3/16 Metric Thread Cast Iron Hanger Bearing Unit and 3-3/16 inch Bore Insert 174.5mm Outside Diameter

RHP SCH3-3/16 Metric Thread Cast Iron Hanger Bearing Unit and 3-3/16 inch Bore Insert 174.5mm Outside Diameter

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 3-3/16 inch
G1 1.26 inch
L 6.87 inch
H 8.327 inch
H1 4.874 inch
Threads M48X5 Metric
A 2.815 inch
A1 1.626 inch
B 3.25 inch
s 1.314 inch
d1 3.878 inch
Dynamic load Cr 71500 N
Static load Cor 54500 N
Rec max speed 2150 rpm
Weight 8.1 kg
Insert <a href="advanced_search_result.php?keywords=1080-3-3/16G+insonly">1080-3-3/16G Click Here</a>
Casting group 6
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
