SKU: SCC8M640X36

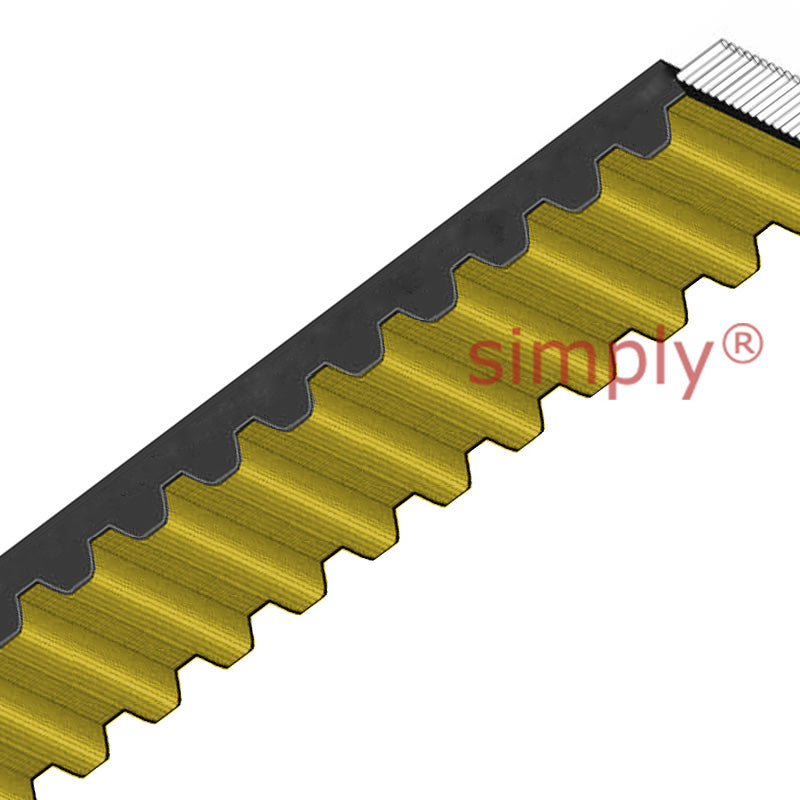

ContiTech SCC8M640X36 Synchrochain Carbon Timing Belt 36mm Width 640mm Length 80 Teeth
ContiTech SCC8M640X36 Synchrochain Carbon Timing Belt 36mm Width 640mm Length 80 Teeth
Regular price
$255.38
ex VAT
Regular price
Sale price
$255.38
ex VAT
In stock
Price Break
3+
$121.10
5+
$114.30
9+
$112.94
19+
$111.58
49+
$110.22
74+
$108.86
99+
$102.05
199+
$100.69
249+
$99.33
499+
$97.97
999+
$95.25
Quantity
Couldn't load pickup availability
Share this product
Description
Description
B8HVXKIRPM
- Brand / Quality:
- ContiTech - High Quality
- Belt Width Approx:
- 36mm
- Belt Depth Approx:
- 5.6mm
- Belt Length Approx:
- 640mm
- Number of Teeth:
- 80
Technical
Technical
| Number of Teeth | 80 |
|---|---|
| Belt Length | 640mm |
| Belt Width | 36mm |
| Tooth Pitch t | 8mm |
| Belt Depth B1 | 5.6mm |
| Belt Depth B2 | 3.4mm |
| Temperature Range | -40 to 80 Deg C |
| Dynamic Stressing Range | Up to 40 m/s |
| Permissible Peripheral Force for Dynamic Applications | 7150 N |
| Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm) | 9350 N |
| Weight Kg | 0.113 kg |
