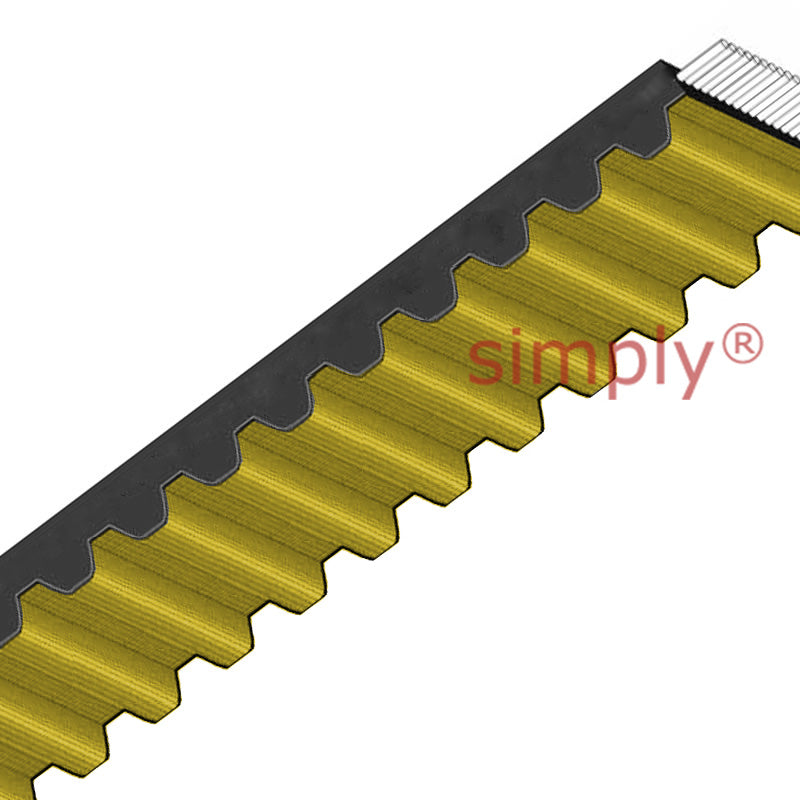

ContiTech SCC8M1040X21 Synchrochain Carbon Timing Belt 21mm Width 1040mm Length 130 Teeth

Name: ContiTech SCC8M1040X21 Synchrochain Carbon Timing Belt 21mm Width 1040mm Length 130 Teeth
Brand: Simply Bearings Ltd - Ball Bearings, Oil Seals, O-rings, V-Belts, SKF
SKU: SCC8M1040X21
Price: 169.14 CAD
Availability: InStock

$169.14 ex VAT

Sale Sold out

In stock

Price Break

3+ $80.21

5+ $75.70

9+ $74.80

19+ $73.90

49+ $73.00

74+ $72.10

99+ $67.59

199+ $66.69

249+ $65.79

499+ $64.89

999+ $63.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

B8HVXKIRPM

Brand / Quality:: ContiTech - High Quality
Belt Width Approx:: 21mm
Belt Depth Approx:: 5.6mm
Belt Length Approx:: 1040mm
Number of Teeth:: 130

Technical

Number of Teeth	130
Belt Length	1040mm
Belt Width	21mm
Tooth Pitch t	8mm
Belt Depth B1	5.6mm
Belt Depth B2	3.4mm
Temperature Range	-40 to 80 Deg C
Dynamic Stressing Range	Up to 40 m/s
Permissible Peripheral Force for Dynamic Applications	4150 N
Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm)	5450 N
Weight Kg	0.107 kg
