• ContiTech SCC14M4410X90 Synchrochain Carbon Timing Belt 90mm Width 4410mm Length 315 Teeth
1 1

SKU: SCC14M4410X90

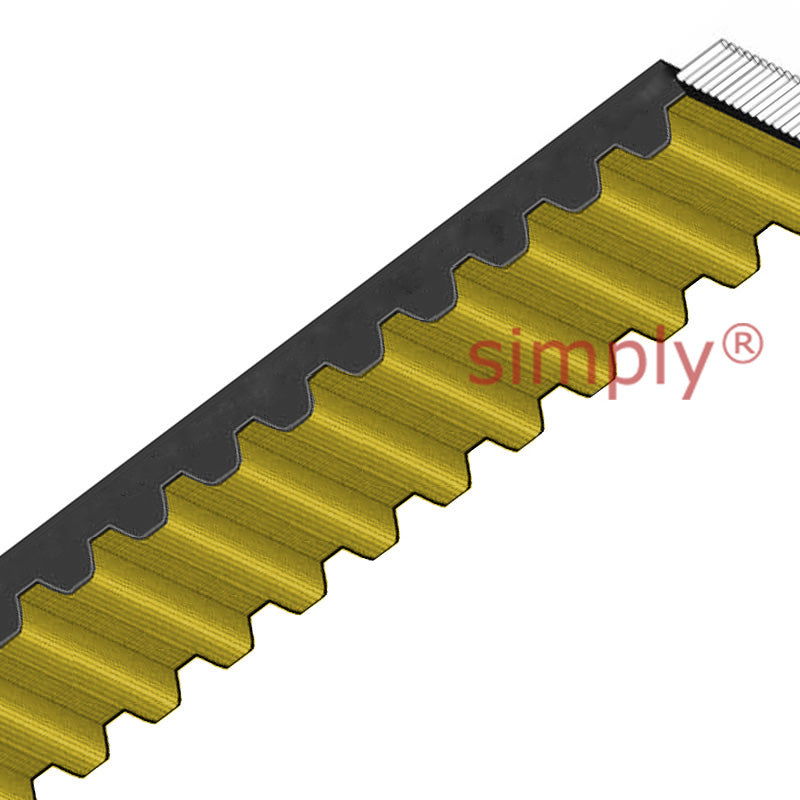

ContiTech SCC14M4410X90 Synchrochain Carbon Timing Belt 90mm Width 4410mm Length 315 Teeth

ContiTech SCC14M4410X90 Synchrochain Carbon Timing Belt 90mm Width 4410mm Length 315 Teeth
$4,302.38 ex VAT
$4,302.38 ex VAT
Sale Sold out

In stock

Price Break
3+ $2,040.19
5+ $1,925.57
9+ $1,902.65
19+ $1,879.72
49+ $1,856.80
74+ $1,833.88
99+ $1,719.26
199+ $1,696.34
249+ $1,673.41
499+ $1,650.49
999+ $1,604.64

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
B8HVXKIRPM
Brand / Quality:
ContiTech - High Quality
Belt Width Approx:
90mm
Belt Depth Approx:
10mm
Belt Length Approx:
4410mm
Number of Teeth:
315
Technical
Number of Teeth 315
Belt Length 4410mm
Belt Width 90mm
Tooth Pitch t 14mm
Belt Depth B1 10mm
Belt Depth B2 6.1mm
Temperature Range -40 to 80 Deg C
Dynamic Stressing Range Up to 40 m/s
Permissible Peripheral Force for Dynamic Applications 24500 N
Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm) 31750 N
Weight Kg 3.1 kg
