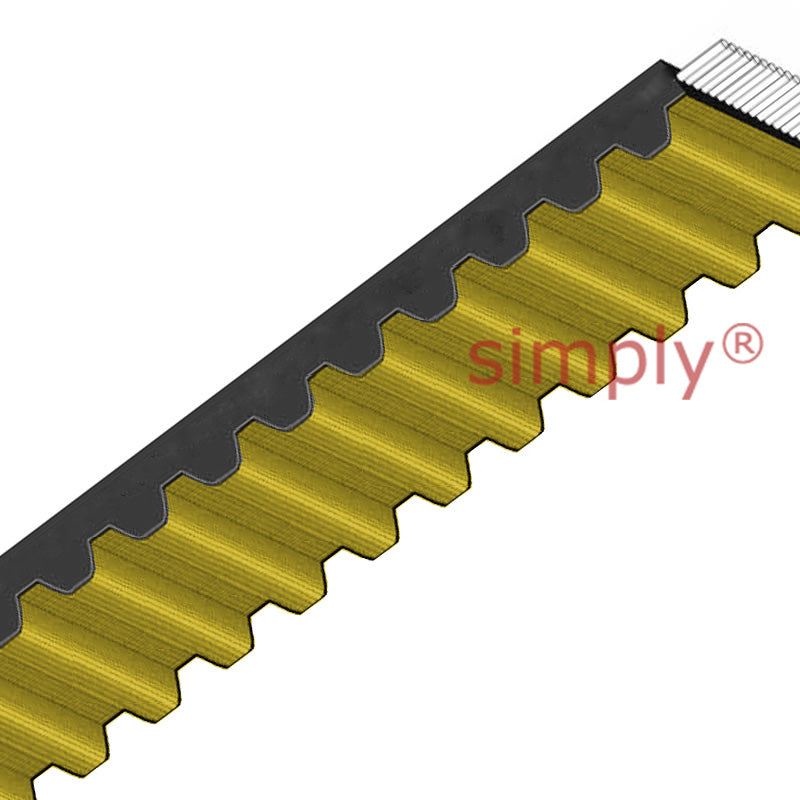

• ContiTech SCC14M3850X90 Synchrochain Carbon Timing Belt 90mm Width 3850mm Length 275 Teeth
1 1

SKU: SCC14M3850X90

ContiTech SCC14M3850X90 Synchrochain Carbon Timing Belt 90mm Width 3850mm Length 275 Teeth

ContiTech SCC14M3850X90 Synchrochain Carbon Timing Belt 90mm Width 3850mm Length 275 Teeth
$3,805.02 ex VAT
$3,805.02 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,804.34
5+ $1,702.97
9+ $1,682.70
19+ $1,662.42
49+ $1,642.15
74+ $1,621.88
99+ $1,520.51
199+ $1,500.24
249+ $1,479.96
499+ $1,459.69
999+ $1,419.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
B8HVXKIRPM
Brand / Quality:
ContiTech - High Quality
Belt Width Approx:
90mm
Belt Depth Approx:
10mm
Belt Length Approx:
3850mm
Number of Teeth:
275
Technical
Number of Teeth 275
Belt Length 3850mm
Belt Width 90mm
Tooth Pitch t 14mm
Belt Depth B1 10mm
Belt Depth B2 6.1mm
Temperature Range -40 to 80 Deg C
Dynamic Stressing Range Up to 40 m/s
Permissible Peripheral Force for Dynamic Applications 24500 N
Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm) 31750 N
Weight Kg 2.706 kg
