SKU: SCC14M1750X68

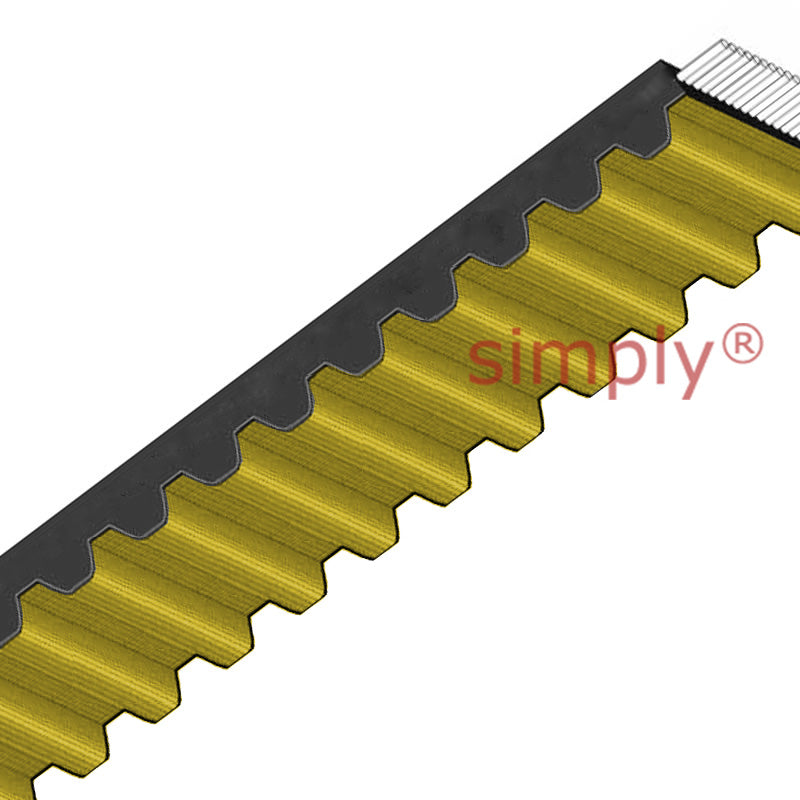

ContiTech SCC14M1750X68 Synchrochain Carbon Timing Belt 68mm Width 1750mm Length 125 Teeth

Name: ContiTech SCC14M1750X68 Synchrochain Carbon Timing Belt 68mm Width 1750mm Length 125 Teeth
Brand: Simply Bearings Ltd - Ball Bearings, Oil Seals, O-rings, V-Belts, SKF
SKU: SCC14M1750X68
Price: 1461.10 CAD
Availability: InStock

$1,461.10 ex VAT

Sale Sold out

In stock

Price Break

3+ $692.85

5+ $653.93

9+ $646.15

19+ $638.36

49+ $630.58

74+ $622.79

99+ $583.87

199+ $576.08

249+ $568.30

499+ $560.51

999+ $544.94

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

B8HVXKIRPM

Brand / Quality:: ContiTech - High Quality
Belt Width Approx:: 68mm
Belt Depth Approx:: 10mm
Belt Length Approx:: 1750mm
Number of Teeth:: 125

Technical

Number of Teeth	125
Belt Length	1750mm
Belt Width	68mm
Tooth Pitch t	14mm
Belt Depth B1	10mm
Belt Depth B2	6.1mm
Temperature Range	-40 to 80 Deg C
Dynamic Stressing Range	Up to 40 m/s
Permissible Peripheral Force for Dynamic Applications	18100 N
Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm)	21950 N
Weight Kg	0.929 kg
