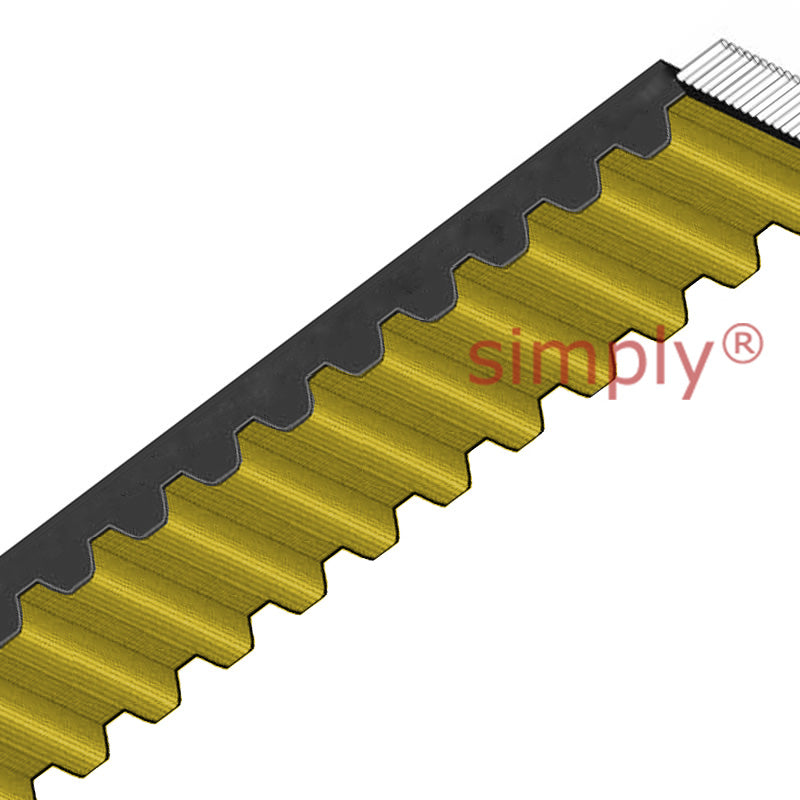

• ContiTech SCC14M1190X68 Synchrochain Carbon Timing Belt 68mm Width 1190mm Length 85 Teeth
1 1

SKU: SCC14M1190X68

ContiTech SCC14M1190X68 Synchrochain Carbon Timing Belt 68mm Width 1190mm Length 85 Teeth

ContiTech SCC14M1190X68 Synchrochain Carbon Timing Belt 68mm Width 1190mm Length 85 Teeth
$1,077.25 ex VAT
$1,077.25 ex VAT
Sale Sold out

In stock

Price Break
3+ $510.83
5+ $482.14
9+ $476.40
19+ $470.66
49+ $464.92
74+ $459.18
99+ $430.48
199+ $424.74
249+ $419.00
499+ $413.26
999+ $401.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
B8HVXKIRPM
Brand / Quality:
ContiTech - High Quality
Belt Width Approx:
68mm
Belt Depth Approx:
10mm
Belt Length Approx:
1190mm
Number of Teeth:
85
Technical
Number of Teeth 85
Belt Length 1190mm
Belt Width 68mm
Tooth Pitch t 14mm
Belt Depth B1 10mm
Belt Depth B2 6.1mm
Temperature Range -40 to 80 Deg C
Dynamic Stressing Range Up to 40 m/s
Permissible Peripheral Force for Dynamic Applications 18100 N
Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm) 21950 N
Weight Kg 0.632 kg
