SKU: SC8M960X12

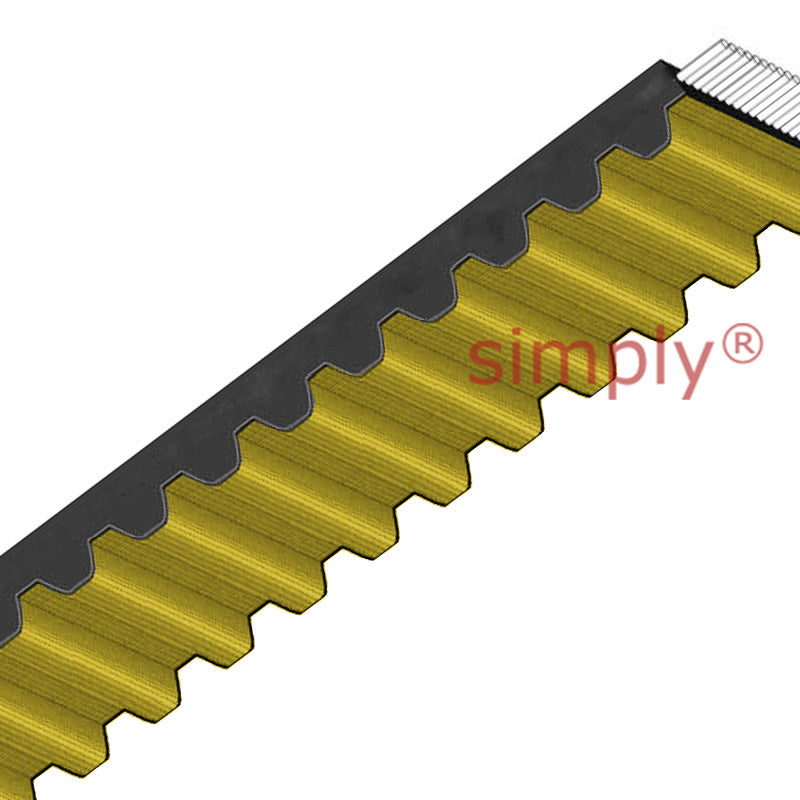

ContiTech SC8M960X12 Synchrochain Timing Belt 12mm Width 960mm Length 120 Teeth
ContiTech SC8M960X12 Synchrochain Timing Belt 12mm Width 960mm Length 120 Teeth
Regular price
$107.47
ex VAT
Regular price
Sale price
$107.47
ex VAT
In stock
Price Break
3+
$50.96
5+
$48.09
9+
$47.52
19+
$46.95
49+
$46.38
74+
$45.80
99+
$42.94
199+
$42.37
249+
$41.80
499+
$41.22
999+
$40.08
Quantity
Couldn't load pickup availability
Share this product
Description
Description
6NZQP2VMVN
- Brand / Quality:
- ContiTech - High Quality
- Belt Width Approx:
- 12mm
- Belt Depth Approx:
- 5.6mm
- Belt Length Approx:
- 960mm
- Number of Teeth:
- 120
Technical
Technical
| Number of Teeth | 120 |
|---|---|
| Belt Length | 960mm |
| Belt Width | 12mm |
| Tooth Pitch t | 8mm |
| Belt Depth B1 | 5.6mm |
| Belt Depth B2 | 3.4mm |
| Temperature Range | -40 to 80 Deg C |
| Dynamic Stressing Range | Up to 40 m/s |
| Permissible Peripheral Force for Dynamic Applications | 1150 N |
| Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm) | 1500 N |
| Weight Kg | 0.056 kg |
