SKU: SC8M2520X21

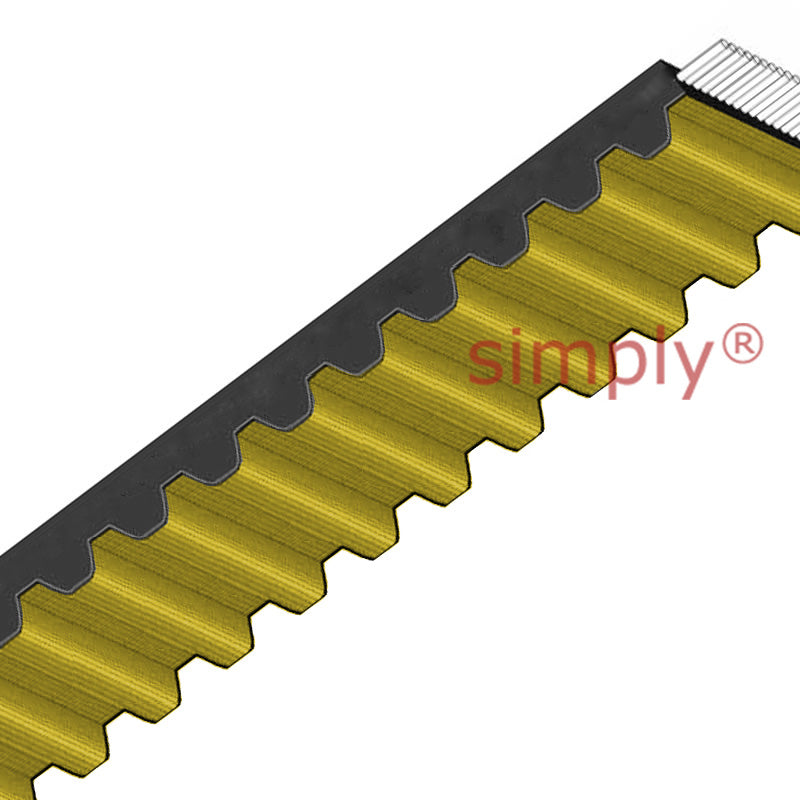

ContiTech SC8M2520X21 Synchrochain Timing Belt 21mm Width 2520mm Length 315 Teeth

Name: ContiTech SC8M2520X21 Synchrochain Timing Belt 21mm Width 2520mm Length 315 Teeth
Brand: Simply Bearings Ltd - Ball Bearings, Oil Seals, O-rings, V-Belts, SKF
SKU: SC8M2520X21
Price: 311.76 CAD
Availability: InStock

$311.76 ex VAT

Sale Sold out

In stock

Price Break

3+ $147.84

5+ $139.53

9+ $137.87

19+ $136.21

49+ $134.55

74+ $132.89

99+ $124.58

199+ $122.92

249+ $121.26

499+ $119.60

999+ $116.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

6NZQP2VMVN

Brand / Quality:: ContiTech - High Quality
Belt Width Approx:: 21mm
Belt Depth Approx:: 5.6mm
Belt Length Approx:: 2520mm
Number of Teeth:: 315

Technical

Number of Teeth	315
Belt Length	2520mm
Belt Width	21mm
Tooth Pitch t	8mm
Belt Depth B1	5.6mm
Belt Depth B2	3.4mm
Temperature Range	-40 to 80 Deg C
Dynamic Stressing Range	Up to 40 m/s
Permissible Peripheral Force for Dynamic Applications	2140 N
Permissible Peripheral Force for Quasi-Static Applications (less than 100 rpm)	2700 N
Weight Kg	0.259 kg
