SKU: SBLF.202-9

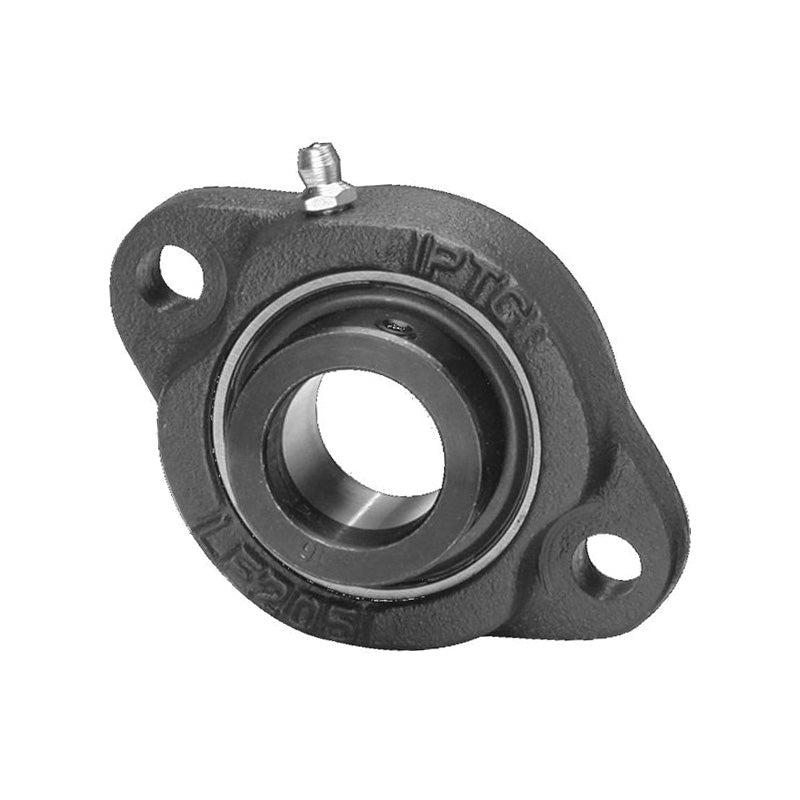

SBLF202-9 Imperial Two Bolt Cast Iron Oval Housing with 9/16 inch Bore Grub Screw Insert
SBLF202-9 Imperial Two Bolt Cast Iron Oval Housing with 9/16 inch Bore Grub Screw Insert
Out of stock
Description
Description
|
SBLF Series 2 Bolt Oval Cast Iron Housings: Normal duty bearing unit supplied with a fully sealed flat back bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted.
The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, Re-lubricateable, replaceable insert, grub screw fixing, flat back of bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 14.29mm = 0.563 (9/16) inch
- Style:
- SBLF
- Bolt Hole Centres:
- 63.5mm

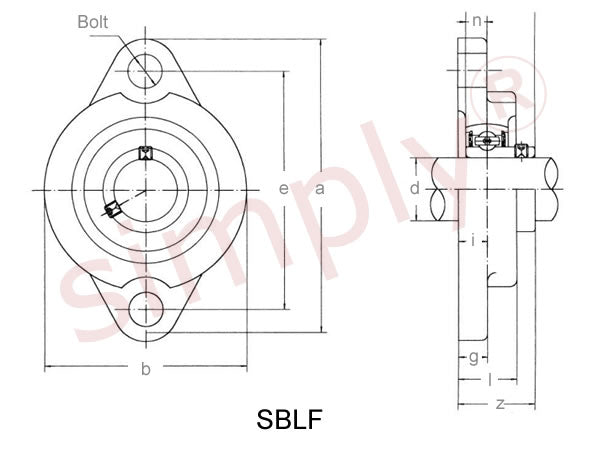

Technical
Technical
| d | 9/16 inch |
|---|---|
| a | 81mm |
| e | 63.5mm |
| b | 56mm |
| i | 9.5mm |
| s | 8mm |
| g | 9.5mm |
| l | 18mm |
| Bolt | M6 |
| z | 25.5mm |
| n | 6mm |
| Weight | 0.3 kg |
| Dynamic load | 760 kgf |
| Static load | 450 kgf |
