SKU: SB075AR0

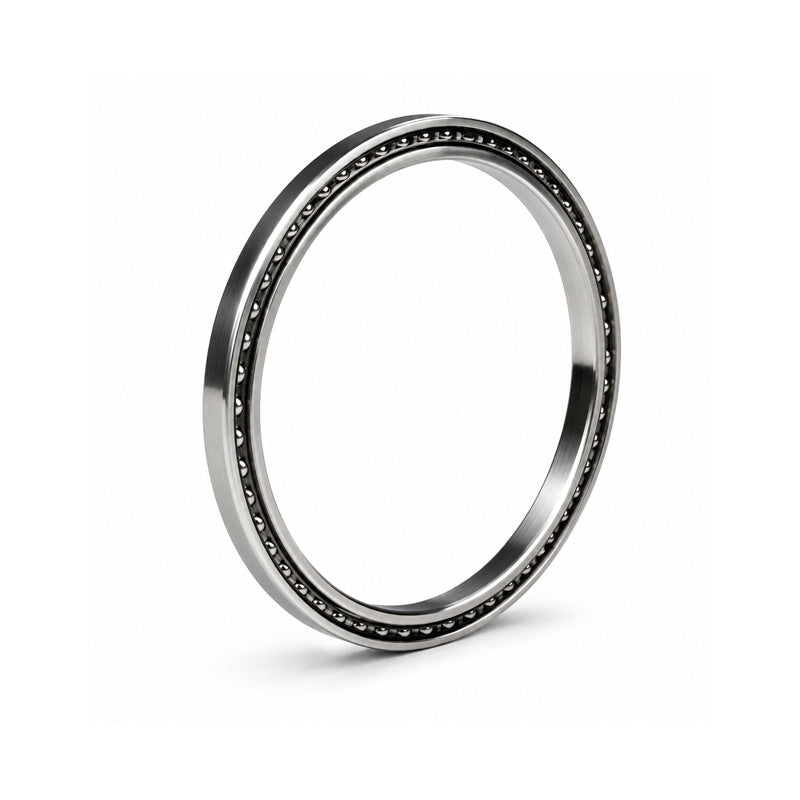

Silverthin SB075AR0 Thin Section Angular Contact Ball Bearing 7.5x8.125x0.312 inch - Allow 7-10 Days
Silverthin SB075AR0 Thin Section Angular Contact Ball Bearing 7.5x8.125x0.312 inch - Allow 7-10 Days
Equivalent to: KB075AR0
Out of stock
Description
Description
|
Silverthin Thin Section Angular Contact Ball Bearings: These bearings have a large bore to outside diameter ratio and are designed to accommodate axial loads. These bearing also support moment loads and reversing axial loads when used in pairs. These bearings also work well in radial or combined radial-thrust applications. Made from 52100 chrome steel and contains a brass circular pocket separator. Benefits: Compact, lightweight, accommodates radial and axial loads, large bore to diameter ratio |
- Brand / Quality:
- Silverthin - High Quality
- Inside Diameter:
- 190.5mm = 7-1/2 inch
- Outside Diameter:
- 206.38mm = 8-1/8 inch
- Width:
- 7.94mm = 5/16 inch
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| B | 7.5 inch |
|---|---|
| D | 8.125 inch |
| Width | 0.312 inch |
| L1 | 7.731 inch |
| L2 | 7.893 inch |
| L3 | 7.955 inch |
| Static Radial Load | 16.472 kN |
| Dynamic Radial Load | 4.844 kN |
| Static Thrust Load | 47.503 kN |
| Dynamic Thrust Load | 13.91 kN |
| Weight | 0.2404kg |
