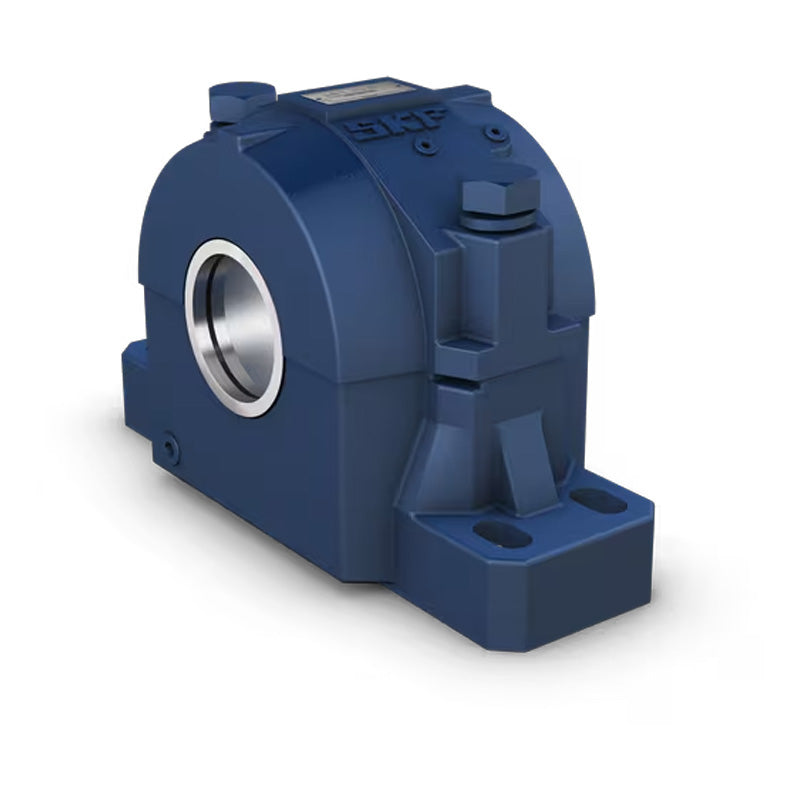

SKF SAFD22530/135 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAFD22530/135 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Share this product
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 135mm
Technical
Technical
| Housing | SAFD530 |
|---|---|
| Triple Ring Seal | LER125/135 |
| Bearing | 22230CCK/W33 |
| Adaptor Sleeve | H3130 |
| Fixing Rings (2 required) | FRB16.5/270 |
| da | 135mm |
| A | 206mm = 8-1/8 inch |
| A1 | 159mm = 6-/14 inch |
| A2 | 213mm = 8-3/8 inch |
| A3 | 289mm = 11-3/8 inch |
| H | 318mm = 12-1/2 inch |
| H1 | 160.34mm = 6-5/16 inch |
| H2 | 64mm = 2-1/2 inch |
| H3 | 51mm = 2 inch |
| L | 540mm = 21-1/4 inch |
| J max | 464mm = 18-1/4 inch |
| J min | 432mm = 17 inch |
| J1 | 95mm = 3-3/4 inch |
| Bolts (required) | (4) 24mm = 1 inch |
| End plug | EPR16 |
| Weight | 95 kg |
