SKU: SAFC2522/4-SKF

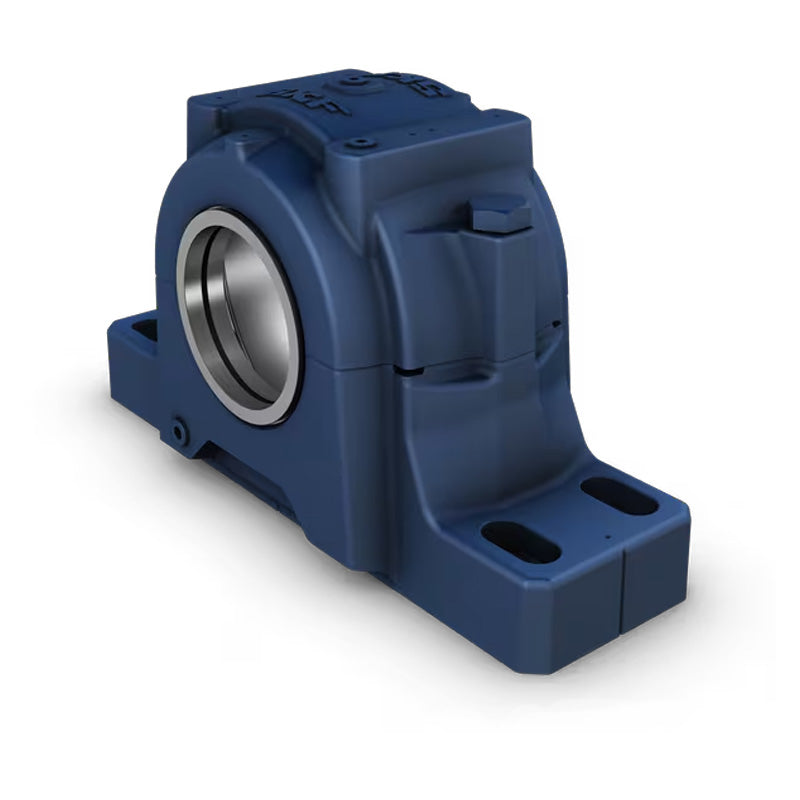

SKF SAFC2522/4 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAFC2522/4 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 101.6mm = 4 inch
Technical
Technical
| Housing | SAF522 |
|---|---|
| Triple Ring Seal | LOR110 |
| Taconite Seal | TER110 |
| Bearing | C2222EK |
| Adaptor Sleeve | HE322E |
| Fixing Rings | 1 x SR22-19 |
| End Cover | EPR13 |
| da | 4 inch |
| A1 | 4-3/4 inch = 120.7mm |
| A2 | 6-1/2 inch = 165.1mm |
| A3 | 9-1/8 inch = 231.8mm |
| H | 9-27/64 inch = 239.3mm |
| H1 | 4-15/16 inch = 125.41mm |
| H2 | 2 inch = 50.8mm |
| Static oil level H3 | 1-32/32 inch = 45.2mm |
| J max | 1-25/32 inch = 45.2mm |
| J min | 14-1/2 inch = 368.3mm |
| J1 | 12-5/8 inch = 320.7mm |
| L | 2-3/4 inch = 69.9mm |
| X | 16-1/2 inch = 419.1mm |
| S | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 3/4 inch = 20mm |
| Weight | 33.1 kg |
