SKU: SAF23056KA/10-7/16-SKF

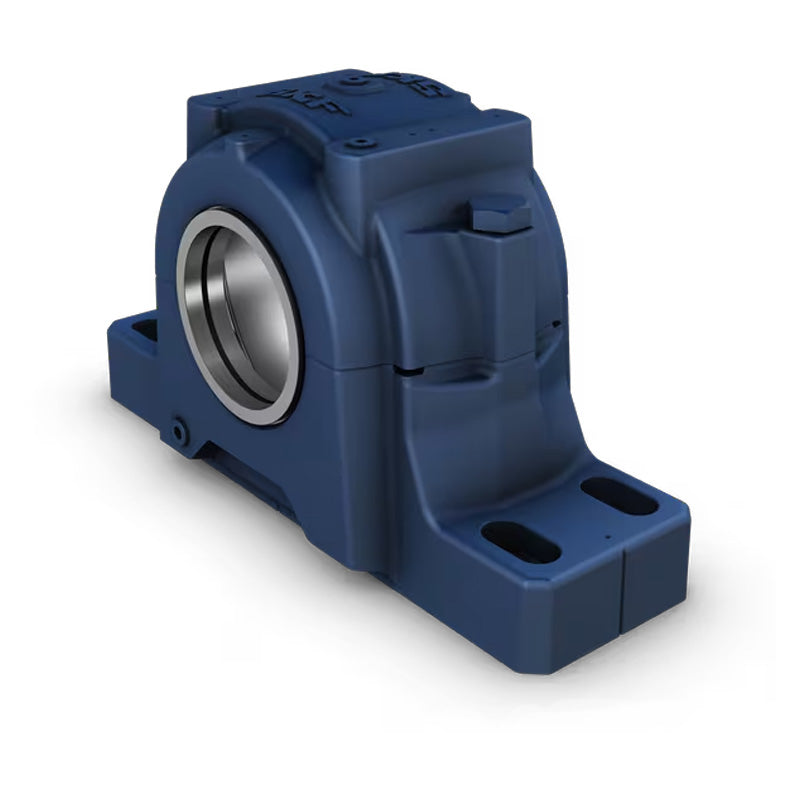

SKF SAF23056KA/10-7/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF23056KA/10-7/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 265.11mm = 10.437 (10-7/16) inch
Technical
Technical
| Housing | SAF056KA |
|---|---|
| Triple Ring Seal | LOR606 |
| Taconite Seal | TER606 |
| Bearing | 23056CCK/W33 |
| Adaptor Sleeve | SNP3056x10-7/16 |
| Fixing Rings | 2 x A-8819 |
| End Cover | X-5217-1 |
| da | 10-7/16 inch |
| A1 | 9 inch = 228.6mm |
| A2 | 12-1/4 inch = 311.2mm |
| A3 | 16-1/2 inch = 419.1mm |
| H | 19-1/2 inch = 495.3mm |
| H1 | 9-7/8 inch = 250.83mm |
| H2 | 4 inch = 101.6mm |
| Static oil level H3 | 2-7/8 inch = 73mm |
| J max | 29-1/2 inch = 749.3mm |
| J min | 26-1/4 inch = 666.8mm |
| J1 | 5-1/2 inch = 139.7mm |
| L | 34-1/4 inch = 870mm |
| Bolts (required) G | (4) 1-1/2 inch = 36mm |
| Weight | 290 kg |
