SKU: SAF23044KA/7-7/8-SKF

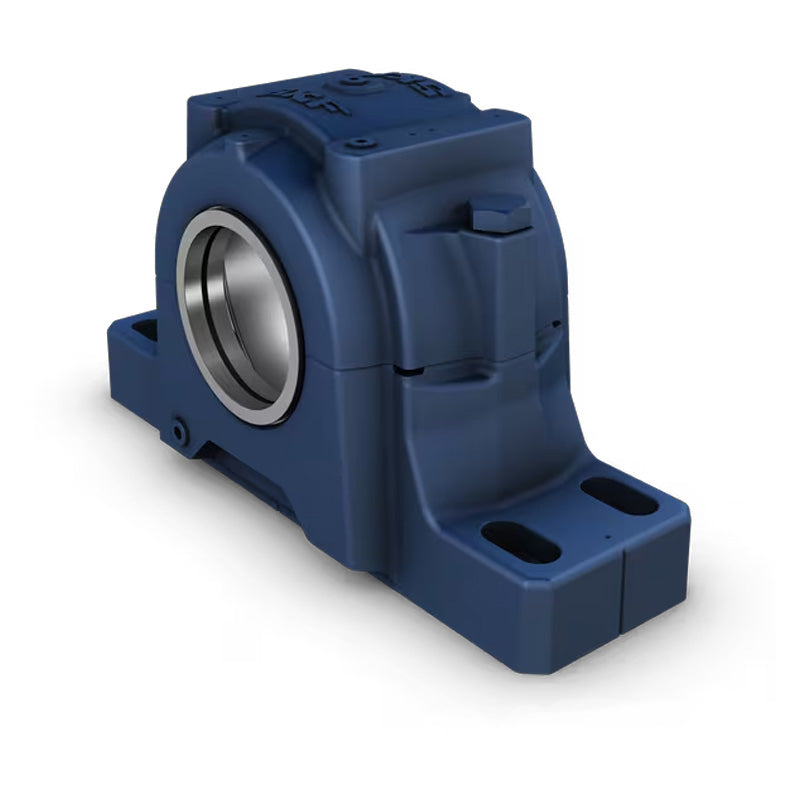

SKF SAF23044KA/7-7/8 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF23044KA/7-7/8 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 200.03mm = 7.875 (7-7/8) inch
Technical
Technical
| Housing | SAF044KA |
|---|---|
| Triple Ring Seal | LOR166 |
| Taconite Seal | TER166 |
| Bearing | 23044CCK/W33 |
| Adaptor Sleeve | SNW3044x7-7/8 |
| Fixing Rings | 2 x 36053-140 |
| End Cover | EPR23 |
| da | 7-7/8 inch |
| A1 | 7-1/2 inch = 190.5mm |
| A2 | 10-3/4 inch = 273.1mm |
| A3 | 13-7/16 inch = 341.3mm |
| H | 15-11/16 inch = 398.5mm |
| H1 | 7-7/8 inch = 200.03mm |
| H2 | 3-1/8 inch = 79.4mm |
| Static oil level H3 | 2-1/4 inch = 57.2mm |
| J max | 24-3/8 inch = 619.1mm |
| J min | 21-5/8 inch = 549.3mm |
| J1 | 4-1/2 inch = 114.3mm |
| L | 28 inch = 711.2mm |
| Bolts (required) G | (4) 1-1/4 inch = 30mm |
| Weight | 175 kg |
