SKU: SAF23036KA/6-1/2-SKF

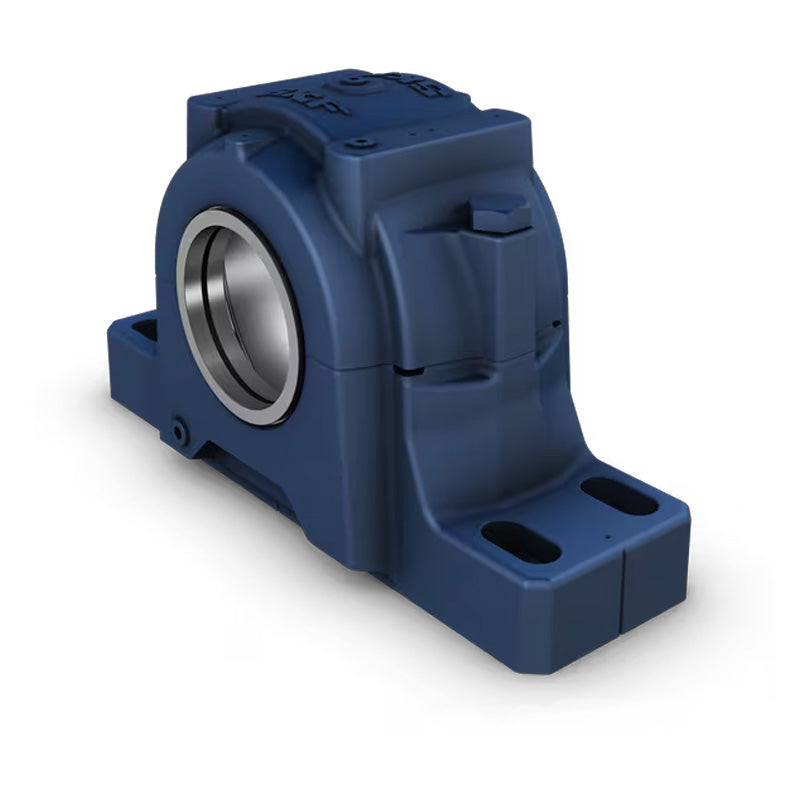

SKF SAF23036KA/6-1/2 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF23036KA/6-1/2 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 165.1mm = 6.5 (6-1/2) inch
Technical
Technical
| Housing | SAF036KA |
|---|---|
| Triple Ring Seal | LOR149 |
| Taconite Seal | TER149 |
| Bearing | 23036CCK/W33 |
| Adaptor Sleeve | SNW3036x6-1/2 |
| Fixing Rings | 2 x 38151-36 |
| End Cover | EPR19 |
| da | 6-1/2 inch |
| A1 | 6-1/4 inch = 158.8mm |
| A2 | 8-3/4 inch = 222.3mm |
| A3 | 11-7/16 inch = 290.5mm |
| H | 13-5/16 inch = 338.1mm |
| H1 | 6-11/16 inch = 169.86mm |
| H2 | 2-5/8 inch = 66.7mm |
| Static oil level H3 | 2-1/16 inch = 52.4mm |
| J max | 19-1/4 inch = 489mm |
| J min | 17-3/8 inch = 441.3mm |
| J1 | 3-3/4 inch = 95.3mm |
| L | 22 inch = 558.8mm |
| Bolts (required) G | (4) 1 inch = 24mm |
| Weight | 102 kg |
