SKU: SAF23028KA/4-15/16-SKF

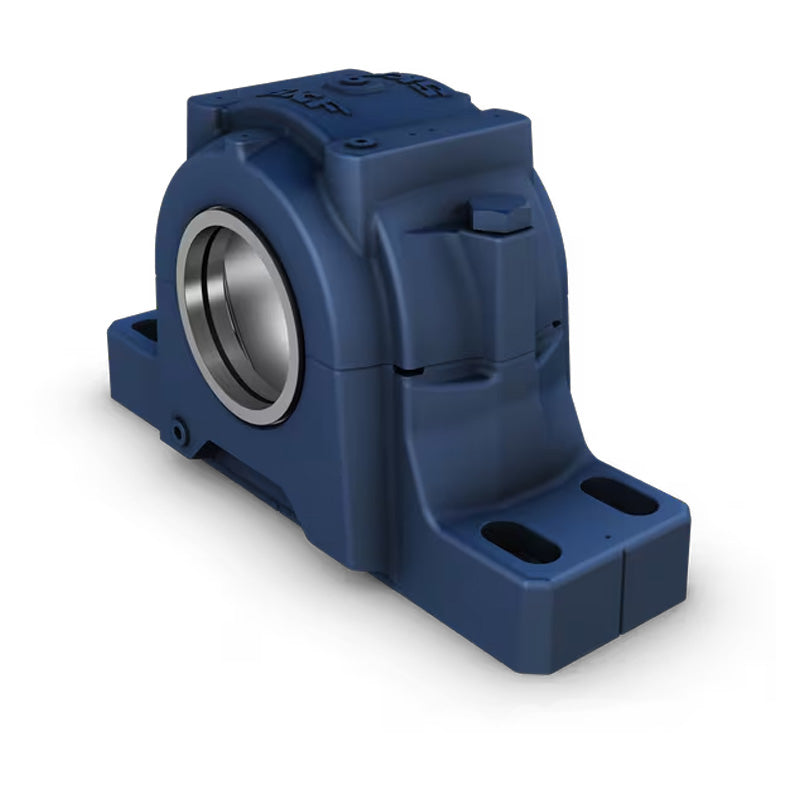

SKF SAF23028KA/4-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF23028KA/4-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 125.41mm = 4.937 (4-15/16) inch
Technical
Technical
| Housing | SAF028KA |
|---|---|
| Triple Ring Seal | LOR122 |
| Taconite Seal | TER122 |
| Bearing | 23028CCK/W33 |
| Adaptor Sleeve | SNW3028x4-15/16 |
| Fixing Rings | 2 x 36053-50 |
| End Cover | EPR27 |
| da | 4-15/16 inch |
| A1 | 4-3/4 inch = 120.7mm |
| A2 | 7-3/8 inch = 187.3mm |
| A3 | 10-1/16 inch = 255.6mm |
| H | 10-1/4 inch = 260.4mm |
| H1 | 5-1/4 inch = 133.35mm |
| H2 | 2-1/8 inch = 54mm |
| Static oil level H3 | 1-13/16 inch = 46mm |
| J max | 14-1/2 inch = 368.3mm |
| J min | 13-1/4 inch = 336.6mm |
| J1 | 2-3/4 inch = 69.9mm |
| L | 16-1/2 inch = 419.1mm |
| Bolts (required) G | (4) 3/4 inch = 20mm |
| Weight | 52.2 kg |
