SKU: SAF22628/4-15/16-SKF

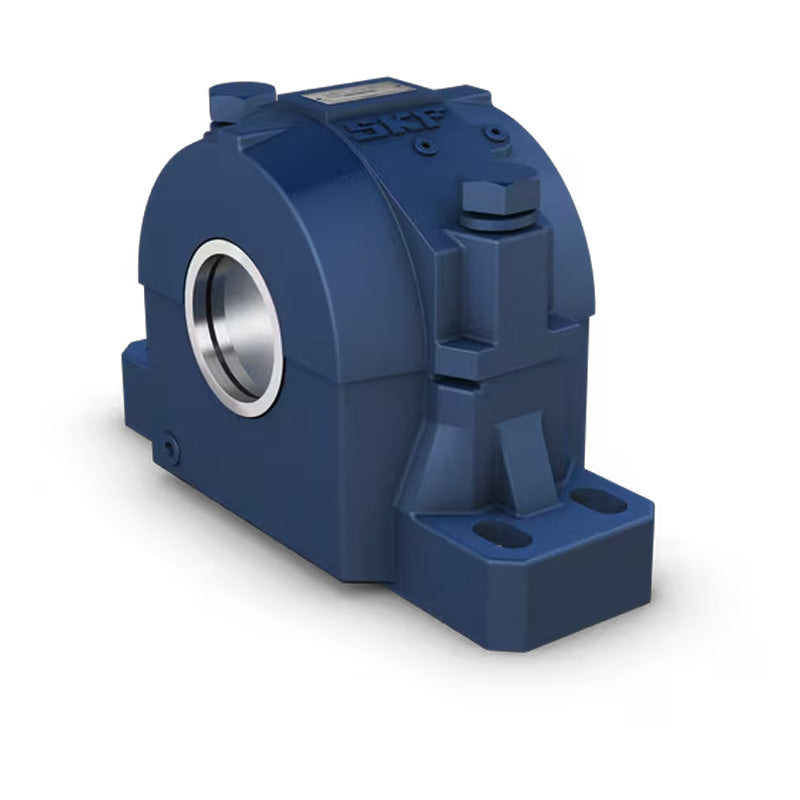

SKF SAF22628/4-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly

Name: SKF SAF22628/4-15/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Brand: SKF
SKU: SAF22628/4-15/16-SKF
Availability: OutOfStock

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SKF - High Quality
Inside Diameter:: 125.41mm = 4.937 (4-15/16) inch

Technical

Housing	SAF628
Triple Ring Seal	LOR122
Taconite Seal	TER122
Bearing	22328CCK/W33
Adaptor Sleeve	HA2328
Fixing Rings	1 x SR0-28
End Cover	EPR27
da	4-15/16 inch
A1	6-3/4 inch = 171.5mm
A2	9-5/8 inch = 244.5mm
A3	12-1/8 inch = 308mm
H	14-3/16 inch = 360.4mm
H1	7-1/16 inch = 179.39mm
H2	2-3/4 inch = 69.9mm
Static oil level H3	2-9/16 inch = 65.1mm
J max	21-5/8 inch = 549.3mm
J min	19-3/8 inch = 492.1mm
J1	4-1/4 inch = 108mm
L	24-3/4 inch = 628.7mm
X	3/16 inch = 4.76mm
Bolts (required) G	(4) 1 inch = 24mm
Weight	149.7 kg
