SKU: SAF22544/7-7/8-SKF

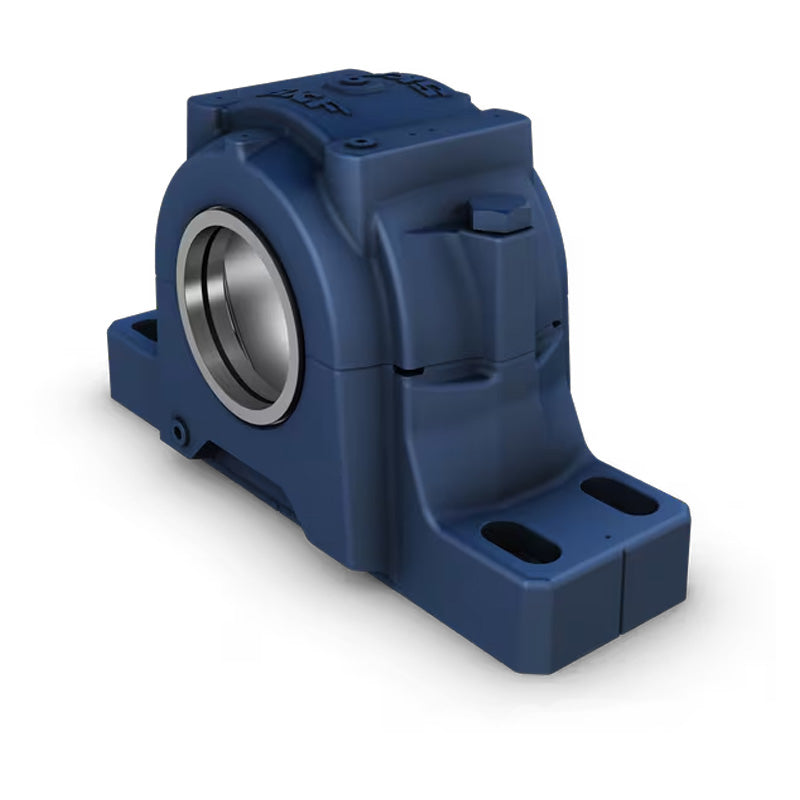

SKF SAF22544/7-7/8 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF22544/7-7/8 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 200.03mm = 7.875 (7-7/8) inch
Technical
Technical
| Housing | SAF544 |
|---|---|
| Triple Ring Seal | LOR166 |
| Taconite Seal | TER166 |
| Bearing | 22244CCK/W33 |
| Adaptor Sleeve | H3144 |
| Fixing Rings | 1 x SR44-38 |
| End Cover | EPR23 |
| da | 7-7/8 inch |
| A1 | 8-3/4 inch = 222.3mm |
| A2 | 12 inch = 304.8mm |
| A3 | 14-1/2 inch = 368.3mm |
| H | 18-5/8 inch = 473.1mm |
| H1 | 9-1/2 inch = 241.3mm |
| H2 | 3-3/4 inch = 95.3mm |
| Static oil level H3 | 3-1/8 inch = 79.4mm |
| J max | 27-7/8 inch = 708mm |
| J min | 24-3/4 inch = 628.7mm |
| J1 | 5-1/4 inch = 133.4mm |
| L | 32-3/4 inch = 831.9mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 1-1/2 inch = 36mm |
| Weight | 305 kg |
