SKU: SAF22540/7-3/16-SKF

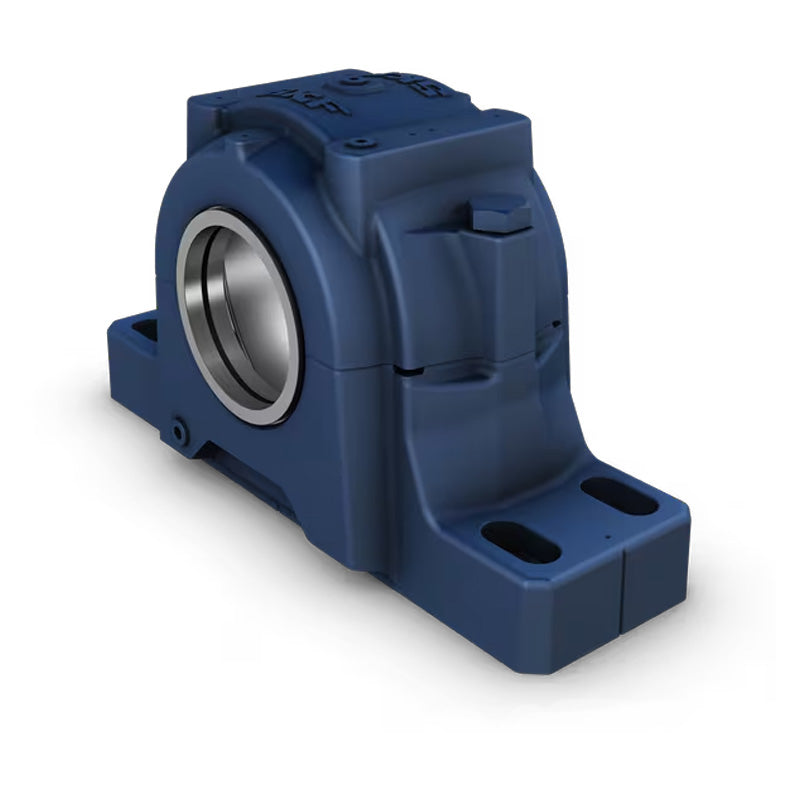

SKF SAF22540/7-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF22540/7-3/16 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 182.6mm = 7.189 (7-3/16) inch
Technical
Technical
| Housing | SAF540 |
|---|---|
| Triple Ring Seal | LOR159 |
| Taconite Seal | TER159 |
| Bearing | 22240CCK/W33 |
| Adaptor Sleeve | HA3140 |
| Fixing Rings | 1 x SR40-34 |
| End Cover | EPR21 |
| da | 7-3/16 inch |
| A1 | 8 inch = 203.2mm |
| A2 | 11-1/4 inch = 285.8mm |
| A3 | 14-1/8 inch = 358.8mm |
| H | 16-1/2 inch = 419.1mm |
| H1 | 8-1/4 inch = 209.55mm |
| H2 | 3-3/8 inch = 85.7mm |
| Static oil level H3 | 2-15/32 inch = 62.7mm |
| J max | 25 inch = 635mm |
| J min | 22-1/2 inch = 571.5mm |
| J1 | 5 inch = 127mm |
| L | 29-1/2 inch = 749.3mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (4) 1-1/4 inch = 30mm |
| Weight | 222.2 kg |
