SKU: SAF1511/2-SKF

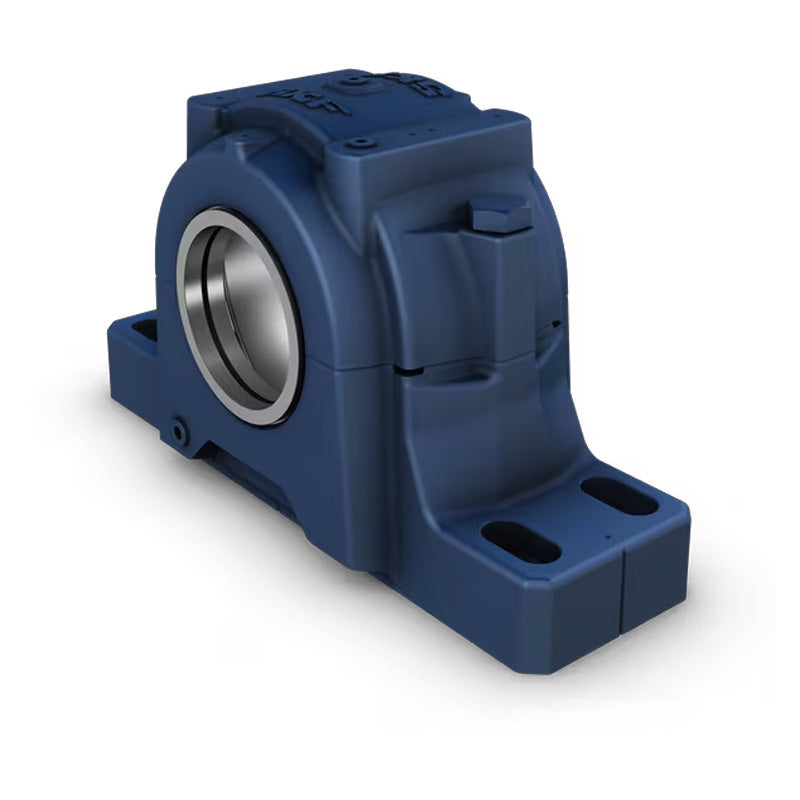

SKF SAF1511/2 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
SKF SAF1511/2 Cast Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
Out of stock
Description
Description
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
Technical
Technical
| Housing | SAF511 |
|---|---|
| Triple Ring Seal | LER25 |
| Taconite Seal | TER25 |
| Bearing | 1211EK |
| Adaptor Sleeve | HE211B |
| Fixing Rings | 1 x SR11-9 |
| End Cover | EPR5 |
| da | 2 inch |
| A1 | 2-3/4 inch = 69.8mm |
| A2 | 3-7/8 inch = 98.4mm |
| A3 | 6-3/4 inch = 171.4mm |
| H | 5-15/64 inch = 132.9mm |
| H1 | 2-3/4 inch = 69.85mm |
| H2 | 15/16 inch = 23.8mm |
| Static oil level H3 Roller bearing | 13/16 inch = 30.2mm |
| Static oil level H3 Ball bearing | 1-1/4 inch = 31.8mm |
| J max | 7-7/8 inch = 200mm |
| J min | 7-3/8 inch = 187.3mm |
| L | 9-5/8 inch = 244.5mm |
| X | 3/16 inch = 4.76mm |
| Bolts (required) G | (2) 5/8 inch = 16mm |
| Weight | 5.9 kg |
