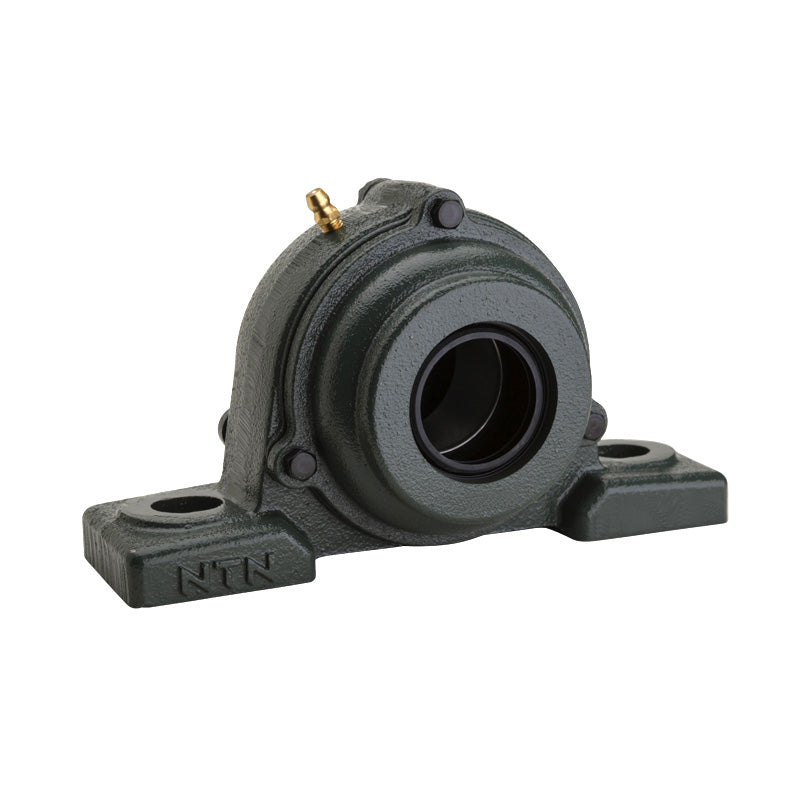

• NTN S-UCP205D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: S-UCP205D1-NTN

NTN S-UCP205D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days

NTN S-UCP205D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert with Steel Plate Cover - Open Version - Allow 2-3 Days
$57.98 ex VAT
$57.98 ex VAT
Sale Sold out

In stock

Price Break
3+ $27.49
4+ $25.95
9+ $25.64
19+ $25.33
49+ $25.02
99+ $24.71
499+ $23.17
999+ $22.86
1999+ $22.55
2999+ $22.24
4999+ $21.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCP200_DESC
Brand / Quality:
NTN - High Quality
Inside Diameter:
25mm
Style:
UCP
Bolt Hole Centres:
105mm
Technical

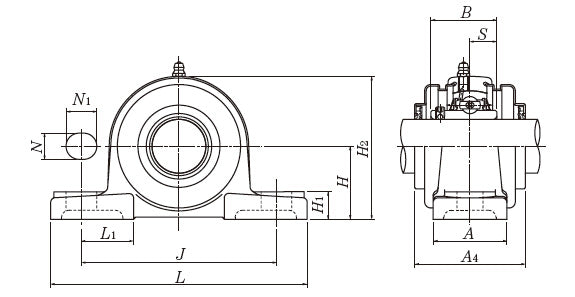

--- Dimensions
Shaft diameter 25mm
H 36.5mm
L 140mm
J 105mm
A 38mm
N 13mm
N<sub>1</sub> 16mm
H<sub>1</sub> 15mm
H<sub>2</sub> 71mm
L<sub>1</sub> 42mm
B 34.1mm
S 14.3mm
A<sub>4</sub> 57mm
Fixing bolt M10
--- Load rating
Dynamic load C<sub>r</sub> 15.5 kN
Static load C<sub>0r</sub> 7.85 kN
Fatigue load limit C<sub>u</sub> 0.55 kN
--- Unit information
Mass 0.9 kg
