SKU: RPNA18/32-EU

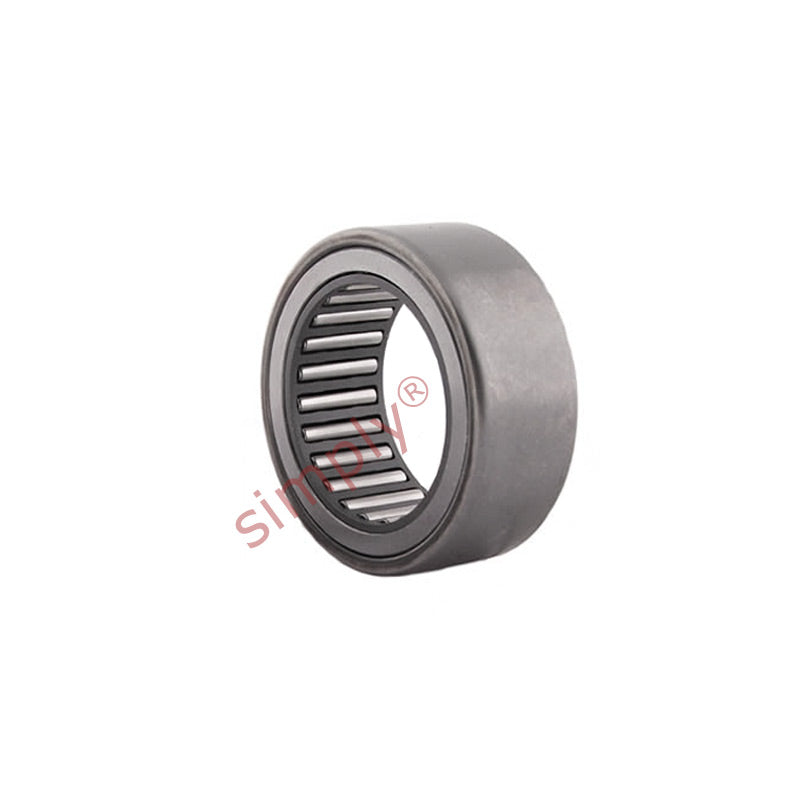

RPNA18/32 Budget Needle Roller Bearing Alignment Type no Inner Race 18x32x16
RPNA18/32 Budget Needle Roller Bearing Alignment Type no Inner Race 18x32x16
Out of stock
Description
Description
|
Budget Alignment Needle Roller without Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied without the inner ring, tolerates misalignment |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 32mm
- Width:
- 16mm
Technical
Technical
| Fw | 18mm |
|---|---|
| D | 32mm |
| B | 16mm |
| Dynamic load C | 12800 N |
| Static load Co | 17600 N |
| Fatigue load limit Pu | 2120 N |
| Speed in grease | 15000 rpm |
| Speed in oil | 22000 rpm |
| D1 | 27mm |
| r min | 1mm |
| Da min | 26mm |
| Da max | 27mm |
| ra max | 1mm |
| Weight | 52 g |
