SKU: RNU203ECP-SKF

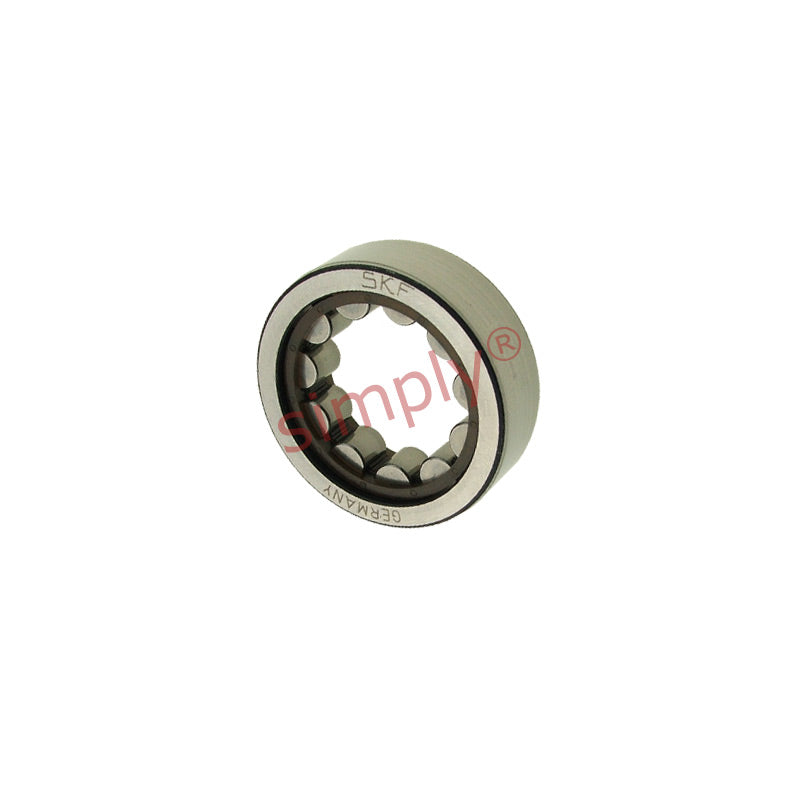

SKF RNU203ECP Single Row Cylindrical Roller Bearing 22.1x40x12mm
SKF RNU203ECP Single Row Cylindrical Roller Bearing 22.1x40x12mm
Regular price
$41.10
ex VAT
Regular price
Sale price
$41.10
ex VAT
In stock
Price Break
10+
$19.49
19+
$18.40
29+
$18.18
39+
$17.96
49+
$17.74
74+
$17.52
99+
$16.43
199+
$16.21
249+
$15.99
499+
$15.77
999+
$15.33
Quantity
Couldn't load pickup availability
Description
Description
|
RNU Series Cylindrical roller Bearings: Typically found in applications where maximum shaft strength is required but a smaller footprint for the bearing is desirable, supplied without inner race these bearings are designed to run directly onto a hardened shaft , a good example of where these are found is in motorcycle crankshaft assemblies and gearboxes where compactness and strength are key factors in the design. Note: For a given RNU series bearing there may be 2 different inside diameters, The E series generally have a smaller inside diameter. |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 22.1mm
- Outside Diameter:
- 40mm
- Width:
- 12mm
Technical
Technical
| d | 22.1mm |
|---|---|
| D | 40mm |
| C | 12mm |
| C1 | 2.5mm |
| Dynamic load | 17.2 kN |
| Static load | 14.3 kN |
| Fatigue load limit Pu | 1.73 kN |
| Reference speed | 19000rpm |
| Limiting speed | 22000rpm |
| r1,2min | 0.6mm |
| Weight | 0.053kg |
