SKU: RCJT50-XL-FA164-INA

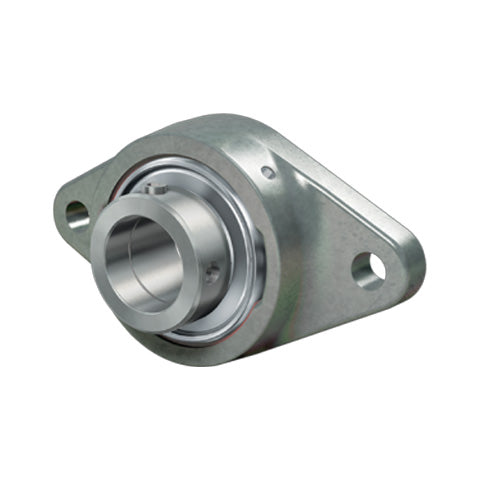

INA RCJT50XLFA164 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert for High Temperatures 50mm Bore
INA RCJT50XLFA164 Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert for High Temperatures 50mm Bore
Out of stock
Description
Description
|
INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, the unit can compensate for static angular misalignment of the shaft of up to 5 degrees if relubrication is not carried out and 2.5 degrees if relubrication is carried out. This housing unit has a high operating temperature range of up to 250 deg C. Benefits: Re-lubricatable, eccentric collar, high operating temperature range, tolerates misalignment of the shaft. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50mm
- Temperature Range:
- High Temp
- Style:
- RCJT
- Bolt Hole Centres:
- 157mm
Technical
Technical
| d | 50mm |
|---|---|
| H | 190mm |
| U | 66.2mm |
| A | 39mm |
| A1 | 13mm |
| A2 | 28mm |
| B1 | 62.8mm |
| d3 max | 69mm |
| J | 157mm |
| L | 116mm |
| N | 18mm |
| Q | M6mm |
| V | 116mm |
| Mass | 2.2 kg |
| Basic dynamic load rating Cr | 37500 N |
| Basic static load rating Cor | 23200 N |
| Designation of housing | CJT10 |
| Designation of bearing | GE50-XL-KRR-B-FA164 |
