SKU: RAXZ515-MB

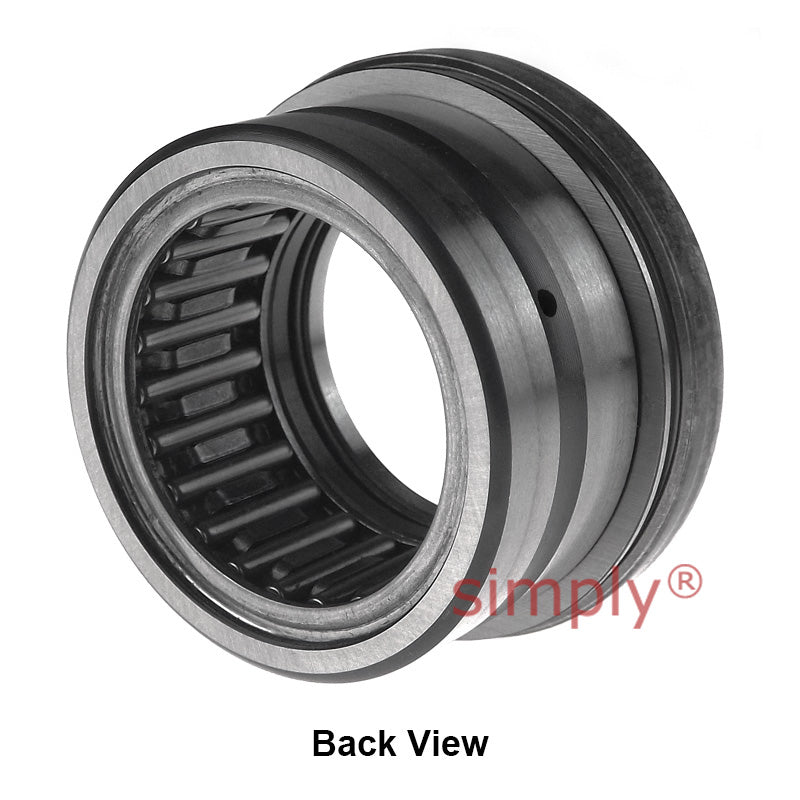

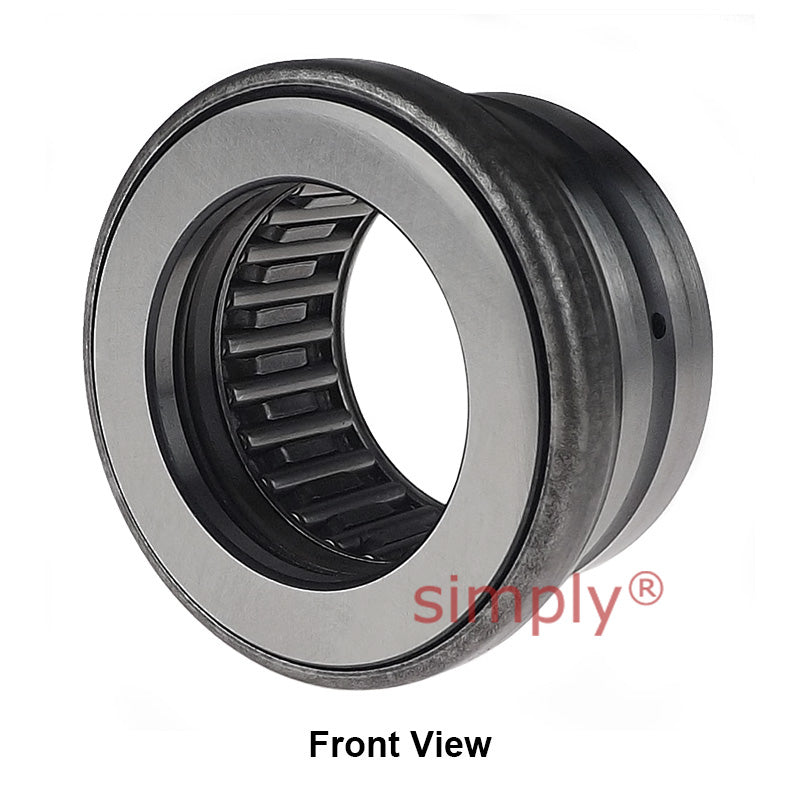

Major Brand RAXZ 515 Combined Bearing with Incorporated Thrust Plate 15x24x22mm Allow 2-3 Days
Major Brand RAXZ 515 Combined Bearing with Incorporated Thrust Plate 15x24x22mm Allow 2-3 Days
Out of stock
Share this product
Description
Description
Nadella Combined Needle Bearings with Incorporated Thrust Plate: These bearings have an incorporated thrust plate retained by a steel ring set on the thrust plate. They are better protected against the introduction of dust and metal particles and are therefore recommended for spindles of drilling machines. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 24mm
- Width:
- 22mm
Technical
Technical
| Fw | 15mm |
|---|---|
| D | 24mm |
| C | 22mm |
| da | 15mm |
| Da | 28.4mm |
| C1 | 8mm |
| C2 | 6mm |
| rs min | 0.35mm |
| Radial dynamic load | 9.66 kN |
| Radial static load | 12.6 kN |
| Axial dynamic load | 14 kN |
| Axial static load | 34 kN |
| Speed rating | 11500 rpm |
| Weight | 0.044 kg |
