SKU: RAXF720-MB

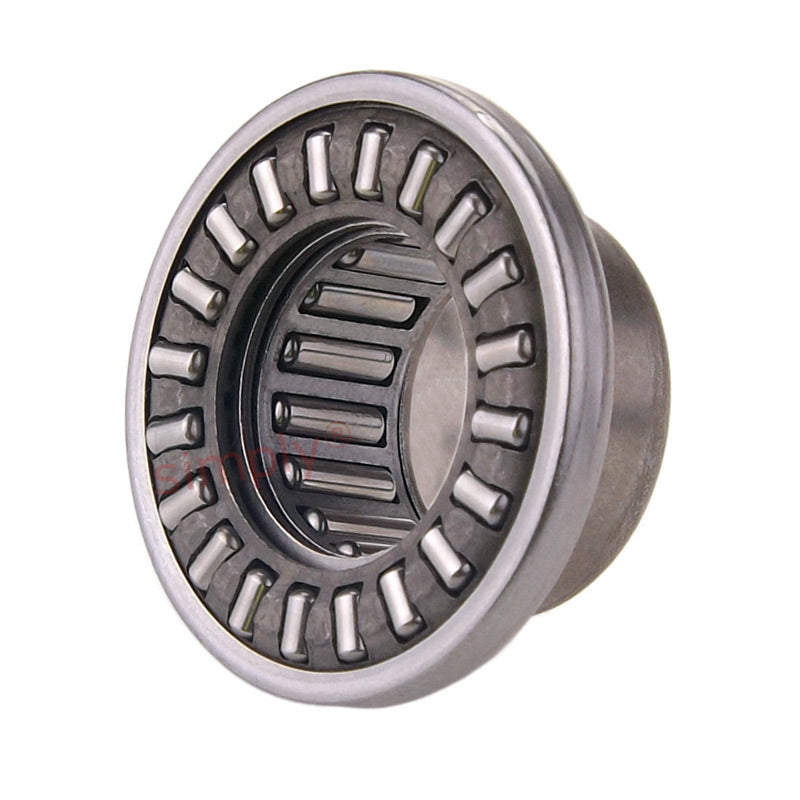

Major Brand RAXF 720 Closed Needle Thrust Bearing 20x26x18.2mm
Major Brand RAXF 720 Closed Needle Thrust Bearing 20x26x18.2mm
Regular price
$56.34
ex VAT
Regular price
Sale price
$56.34
ex VAT
In stock
Price Break
10+
$26.72
19+
$25.22
29+
$24.92
39+
$24.62
49+
$24.32
74+
$24.02
99+
$22.52
199+
$22.22
249+
$21.92
499+
$21.62
999+
$21.02
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Nadella Combined Closed End Needle Roller Bearings : Closed-end combined bearings ensure perfect sealing at the end of a shaft and do not require the use of blind housings or end caps. The shape of this outer ring prevents weakness in the area between the axial component and the radial component, even after the latter has been tightly fitted into a housing. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 18.2mm

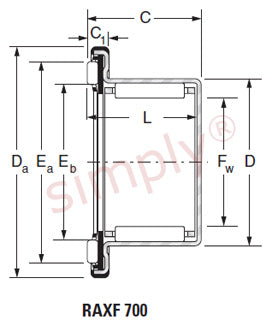

Technical
Technical
| Fw | 20mm |
|---|---|
| D | 26mm |
| C | 18.2mm |
| Da | 36.5mm |
| Eb | 22mm |
| Ea | 31.6mm |
| C1 | 4.2mm |
| L | 17.2 |
| Radial dynamic load | 12.2 |
| Radial static load | 19.5 kN |
| Axial dynamic load | 11.8 kN |
| Axial static load | 39 kN |
| Limit loads radial | 6.4 kN |
| Limit loads axial | 18 kN |
| Speed rating | 9000 rpm |
| Housing | 26mm |
| GO plug-gauges | 20.009mm |
| NO-GO plug-gauges | 20.035mm |
| Inner ring | JR 15x20x16 |
| Weight | 0.035 kg |
