SKU: RAE20-NPP-NR-INA

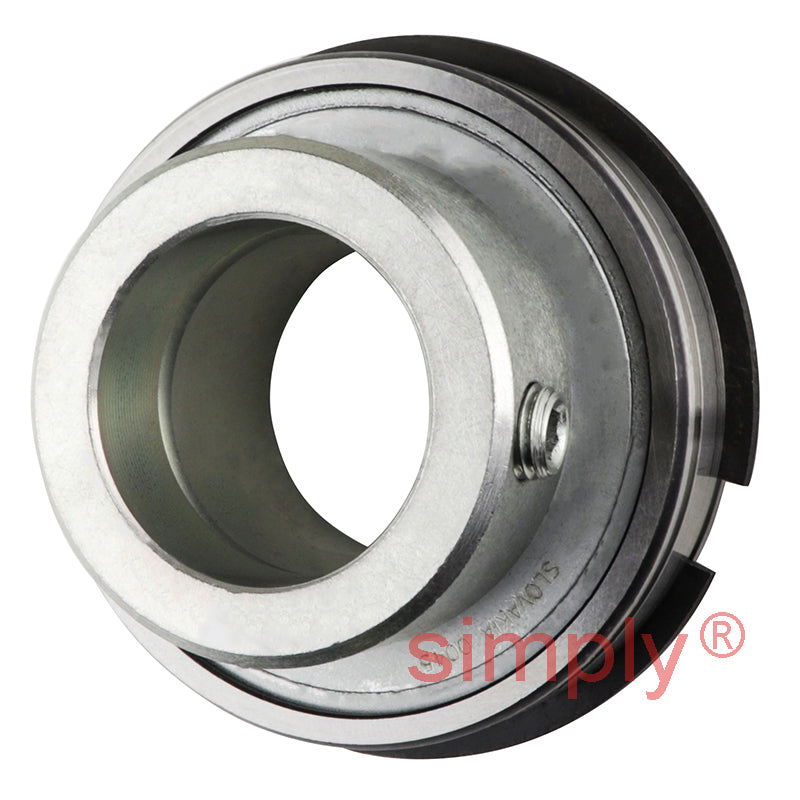

INA RAE20XLNPPNR Metric Parallel Outer Bearing Insert with P Seals and Slots in Outer Ring 20x47x31mm
INA RAE20XLNPPNR Metric Parallel Outer Bearing Insert with P Seals and Slots in Outer Ring 20x47x31mm
Regular price
$35.17
ex VAT
Regular price
Sale price
$35.17
ex VAT
In stock
Price Break
3+
$16.68
5+
$15.74
10+
$15.55
15+
$15.37
20+
$15.18
30+
$14.99
40+
$14.06
50+
$13.87
60+
$13.68
75+
$13.49
100+
$13.12
Quantity
Couldn't load pickup availability
Description
Description
|
INA RAE..-NPP-NR Series Inserts: Bearing insert with parallel outer race, P seals, eccentric collar and slots in the outer ring. The bearing is supplied with one snap ring to DIN 5 417 already fitted. These ball bearings are greased and cannot be re-lubricated. Operating temperature range: -20 deg C to +120 deg C. Benefits: Accommodates snap rings. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Width:
- 31mm
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| B1 | 31mm |
| A | 3.58mm |
| Tolerance | -0.25 |
| a | 1.12mm |
| B | 21.4mm |
| C | 14mm |
| D2 | 52.7mm |
| d2 | 26.9mm |
| d3 max | 33mm |
| S | 7.5mm |
| W | 3mm |
| Dynamic load Cr | 12800 N |
| Static load C0r | 6600 N |
| Weight | 0.17 kg |
