SKU: QJ.219

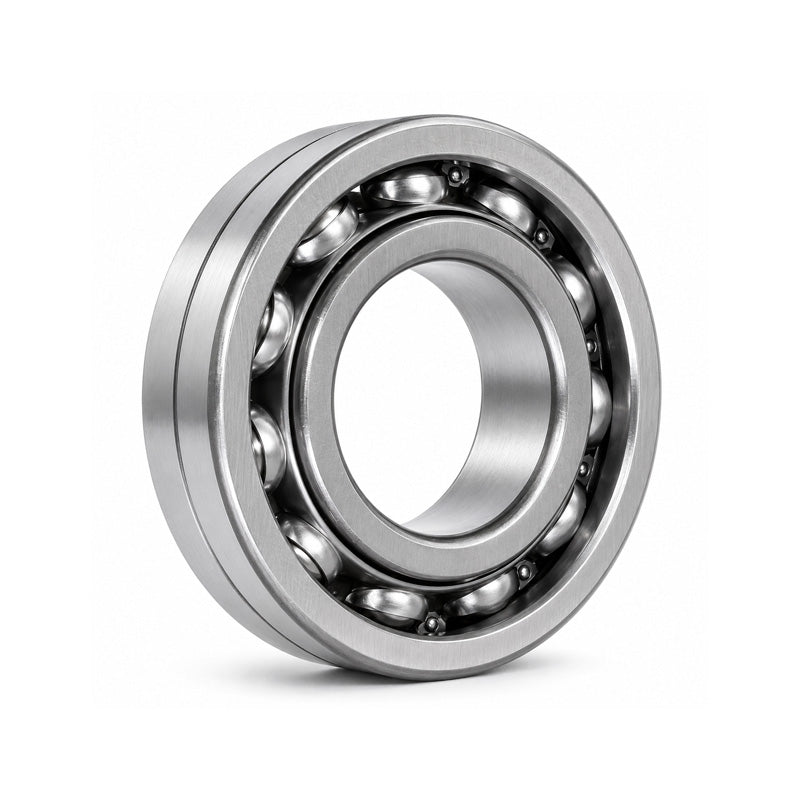

Premier Budget QJ219 Four Point Contact Ball Bearing (Two Part Outer Race) 95x170x32mm
Premier Budget QJ219 Four Point Contact Ball Bearing (Two Part Outer Race) 95x170x32mm
Out of stock
Share this product
Description
Description
Four Point Contact Ball Bearings: Are radial single row angular contact ball bearings with raceways that are designed to tolerate axial load in both directions. The inner raceways of these bearings are separable for ease of mounting. This style of bearing takes up considerably less space than the double row ball bearing of equivalent bore size
Benefits: Supports axial loads in both directions, ease of mounting.
Benefits: Supports axial loads in both directions, ease of mounting.
- Brand / Quality:
- Premier Budget - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 170mm
- Width:
- 32mm
Technical
Technical
| d | 95mm |
|---|---|
| D | 170mm |
| B | 32mm |
| Dynamic Load | 199 kN |
| Static Load | 3900 kN |
| Speed in grease max | 2750 rpm |
| Speed in oil max dia | 3900 rpm |
| Weight | 3.35 kg |
