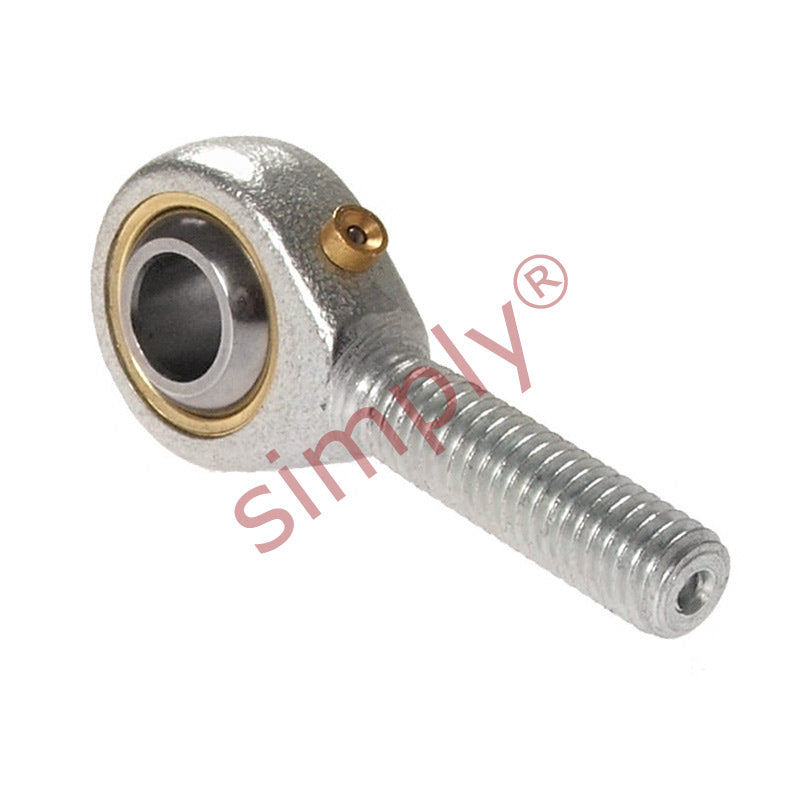

• Budget POS22 Right Hand Steel / Bronze Lined Plain Male Rod End 22mm Bore M22x1.5 Thread
1 1

SKU: POS22.EU

Budget POS22 Right Hand Steel / Bronze Lined Plain Male Rod End 22mm Bore M22x1.5 Thread

Budget POS22 Right Hand Steel / Bronze Lined Plain Male Rod End 22mm Bore M22x1.5 Thread
$31.83 ex VAT
$31.83 ex VAT
Sale Sold out

Equivalent to: GAKFR22PB SAKAC22M SM22 MB-M22

In stock

Price Break
10+ $15.11
19+ $14.26
29+ $14.09
39+ $13.92
49+ $13.75
74+ $13.58
99+ $12.73
199+ $12.56
249+ $12.39
499+ $12.22
999+ $11.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M22x1.5
Thread M / F:
Male
Thread Direction:
Right Hand
Inside Diameter:
22mm
Material:
Bronze Lined
Technical
d 22mm
B 28mm
r1 0.6mm
C1 20mm
d1 max 25.8mm
d2 50mm
d3 M22x1.5
h 84mm
l1 51mm
l2 109mm
Ball diameter 1-1/2 inch
Dynamic load Cr 38.1 kN
Static load Cor 42.6 kN
Max angle α 15
Weight 0.435 kg
