• Budget POS18 Right Hand Steel / PTFE Lined Plain Male Rod End 18mm Bore M18x1.5 Thread
  • Budget POS18 Right Hand Steel / PTFE Lined Plain Male Rod End 18mm Bore M18x1.5 Thread
  • Budget POS18 Right Hand Steel / PTFE Lined Plain Male Rod End 18mm Bore M18x1.5 Thread
  • Budget POS18 Right Hand Steel / PTFE Lined Plain Male Rod End 18mm Bore M18x1.5 Thread
1 4

SKU: POS18.EC

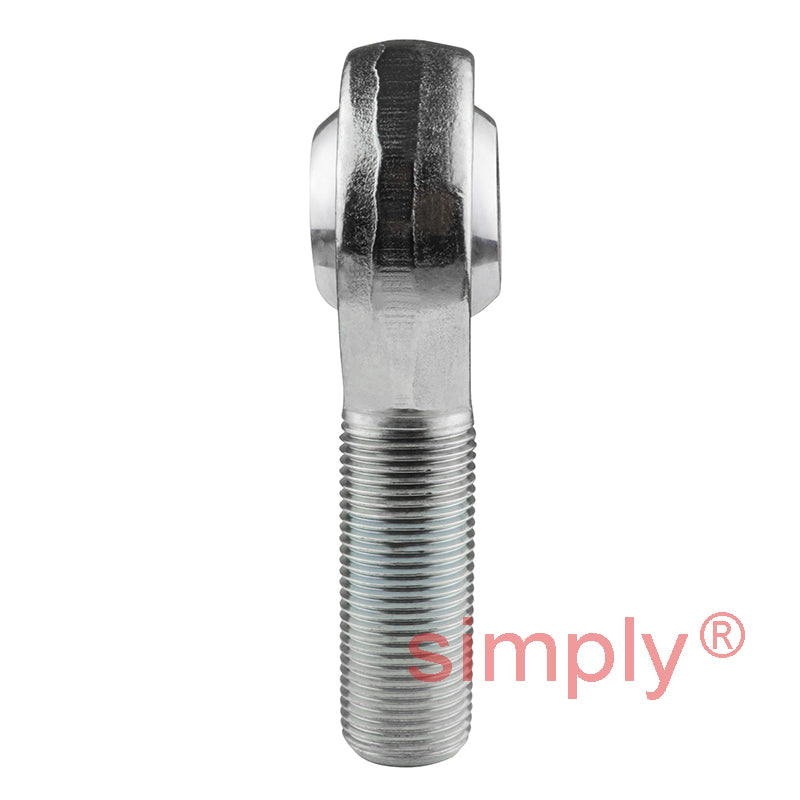

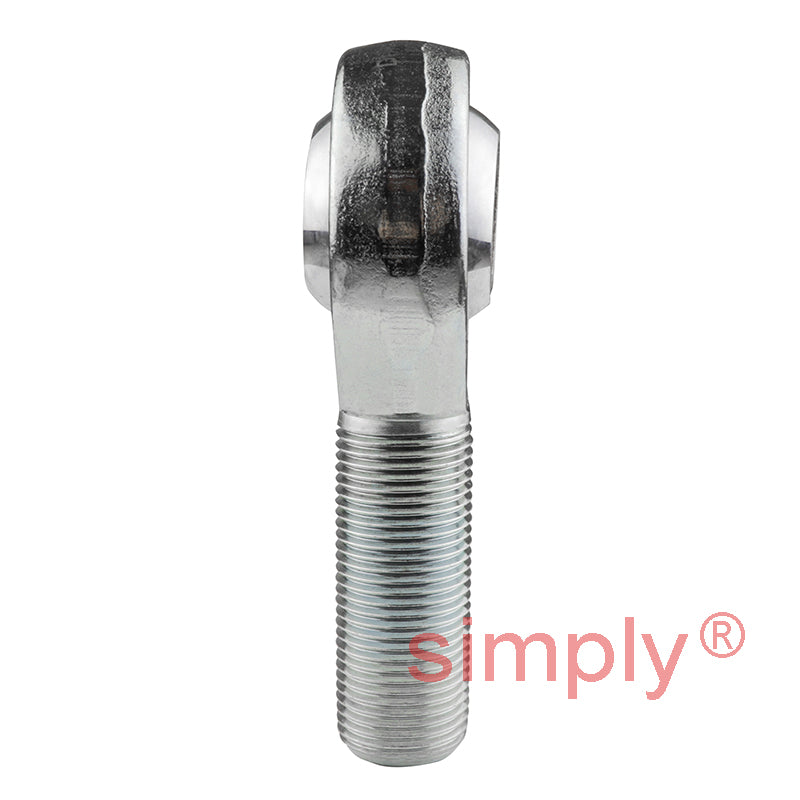

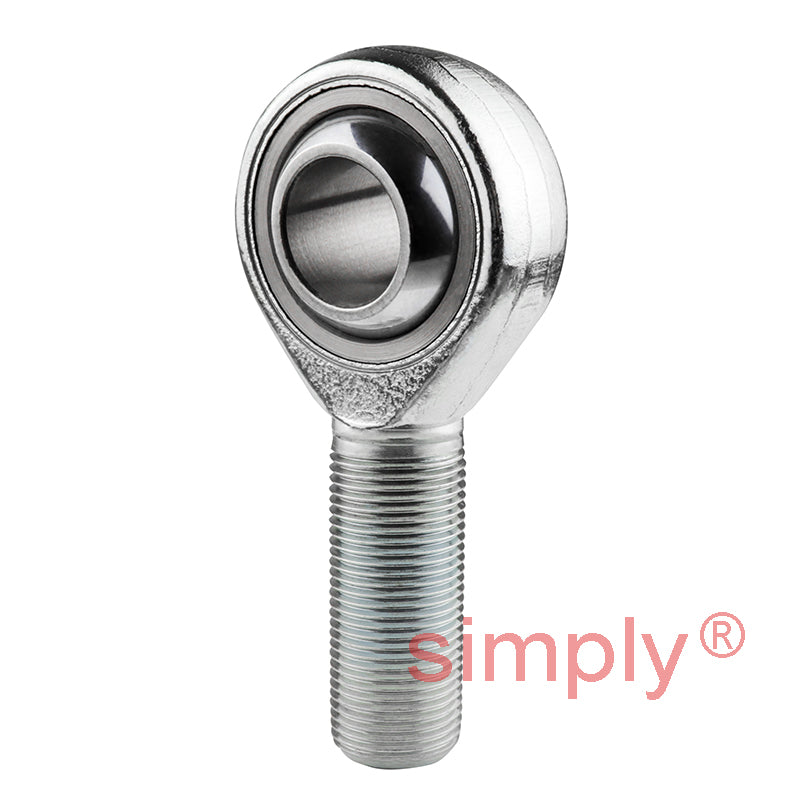

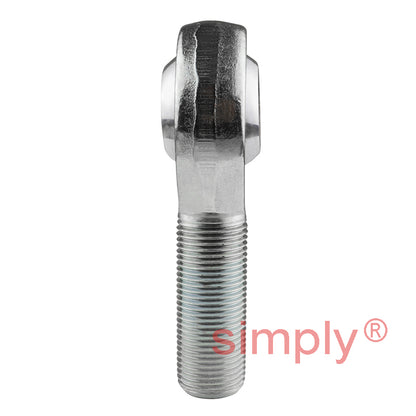

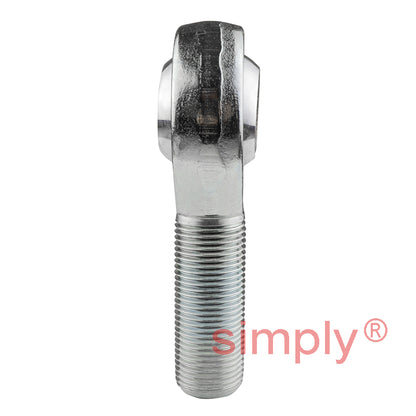

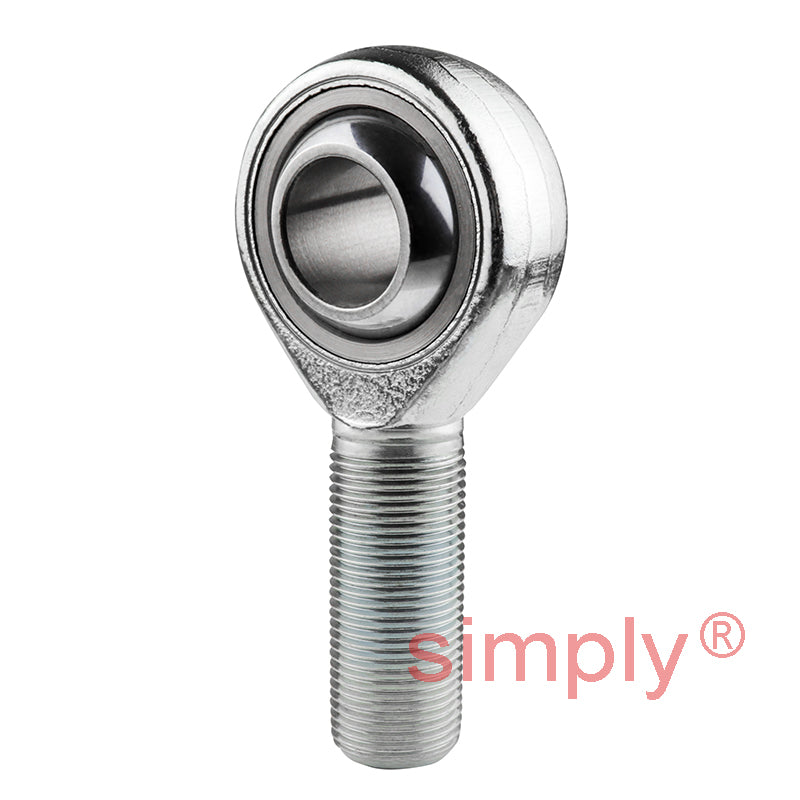

Budget POS18 Right Hand Steel / PTFE Lined Plain Male Rod End 18mm Bore M18x1.5 Thread

Budget POS18 Right Hand Steel / PTFE Lined Plain Male Rod End 18mm Bore M18x1.5 Thread
$15.05 ex VAT
$15.05 ex VAT
Sale Sold out

In stock

Price Break
10+ $7.15
19+ $6.75
29+ $6.67
39+ $6.59
49+ $6.51
74+ $6.43
99+ $6.02
199+ $5.94
249+ $5.86
499+ $5.78
999+ $5.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway.
Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze.
Brand / Quality:
EU Budget - Economy Quality
Thread Size:
M18x1.5
Thread Direction:
Right Hand
Material:
PTFE Lined
Technical
d 18mm
B 23mm
r1 0.6mm
C1 16.5mm
d1 max 21.8mm
d2 42mm
d3 M18x1.5
h 72mm
l1 44mm
l2 93mm
Ball diameter 1-1/4 inch
Dynamic load Cr 26.2 kN
Static load Cor 30.8 kN
Max angle α 15
Weight 0.26 kg
