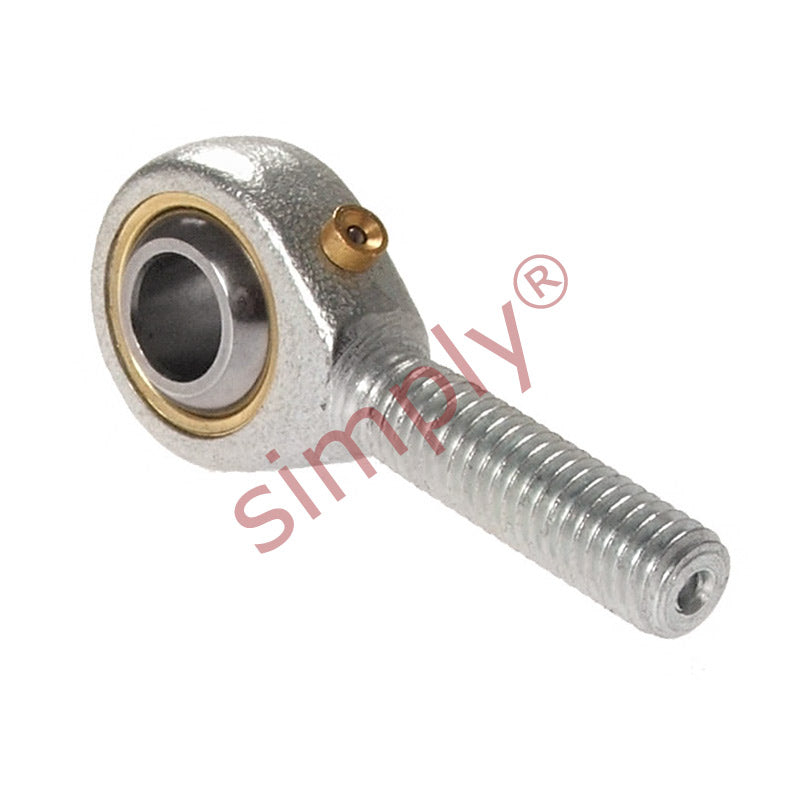

Budget POS17 Right Hand Steel / Bronze Lined Plain Male Rod End 17mm Bore M16x1.5 Thread
Budget POS17 Right Hand Steel / Bronze Lined Plain Male Rod End 17mm Bore M16x1.5 Thread
Out of stock
Description
Description
|
Male Rod End with Phosphor Bronze Race: Right hand thread male rod end consisting of galvanized mild steel body with a Gcr15 hardened Chrome steel ball (58-64 HRC) running in a phosphor bronze raceway. Benefits: Cost effective replacement bearing, sliding surfaces are steel against phosphor bronze. |
- Brand / Quality:
- EU Budget - Economy Quality
- Thread Size:
- M16x1.5
- Thread M / F:
- Male
- Thread Direction:
- Right Hand
- Inside Diameter:
- 17mm
- Material:
- Bronze Lined
Technical
Technical
| d | 17mm |
|---|---|
| B | 22mm |
| r1 | 0.6mm |
| C1 | 16mm |
| d1 max | 20.6mm |
| d2 | 40mm |
| d3 | M16x1.5 |
| h | 69mm |
| l1 | 42mm |
| l2 | 89mm |
| Ball diameter | 1-3/16 inch |
| Dynamic load Cr | 23.8 kN |
| Static load Cor | 28.4 kN |
| Max angle α | 14 |
| Weight | 0.206 kg |
