SKU: PNA22/44-MB

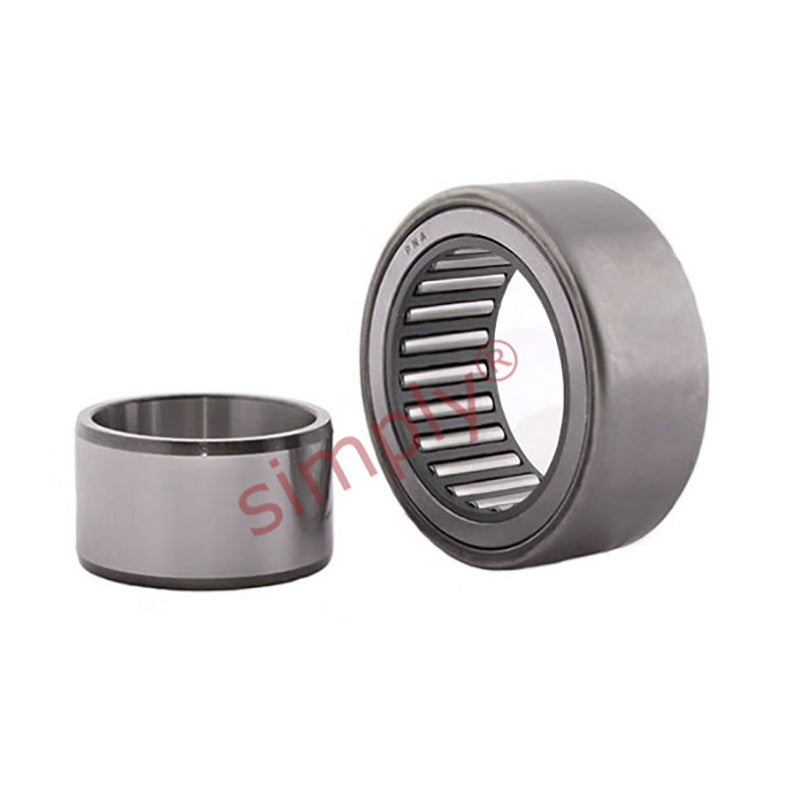

Major Brand PNA22/44 Needle Roller Bearing Alignment Type With Shaft Sleeve 22x44x20
- Regular price
- $186.38 ex VAT
- Sale price
- $186.38
- Regular price
-
Not in stock
Quantity Price Breaks
10
$165.88
19
$156.56
29
$154.70
39
$152.83
49
$150.97
74
$149.10
99
$139.79
199
$137.92
249
$136.06
499
$134.19
999
$130.47
SKU:
PNA22/44-MB
Major Brand PNA22/44 Needle Roller Bearing Alignment Type With Shaft Sleeve 22x44x20
- Regular price
- $186.38 ex VAT
- Sale price
- $186.38
- Regular price
-
Description
|
Alignment Needle Roller with Inner Ring: Alignment type needle roller bearings have a convex outside surface which is located in a plastic seating ring with a concaved inner face to match that of the bearing which is located in a drawn sheet steel outer ring allowing for some degree of self alignment. Benefits: Supplied with the inner ring, tolerates misalignment |
Technical
| d | = | 22mm |
| D | = | 44mm |
| B | = | 20mm |
| Dynamic load | = | 22000 N |
| Static load | = | 36500 N |
| Fatigue load limit Pu | = | 4550 N |
| Speed in grease | = | 9000 rpm |
| Speed in oil | = | 14000 rpm |
| F | = | 28mm |
| D1 | = | 38.5mm |
| r min | = | 1mm |
| r1r2 min | = | 0.3mm |
| s (axial disp) | = | 0.5mm |
| da min | = | 24mm |
| Da min | = | 37.5 |
